Specifications: Toyota Yaris I (facelift 2003) 3-door 1.3 VVT-i (87 Hp) 2003, 2004, 2005

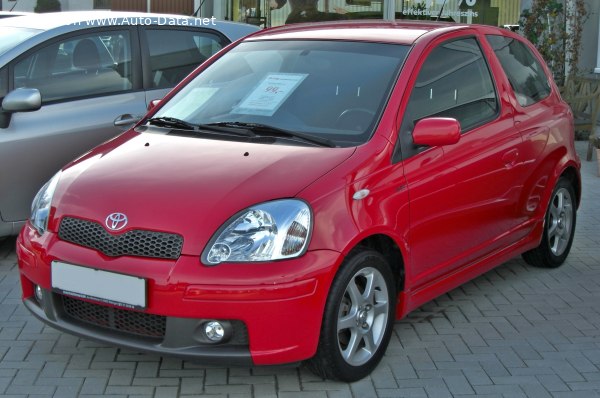

2003 Toyota Yaris I (facelift 2003) 3-door - Photo 1

Toyota Yaris I (facelift 2003) 3-door 1.3 VVT-i (87 Hp) – Full specifications
General information
Brand Toyota
Model Yaris
Generation Yaris I (facelift 2003) 3-door
Modification (Engine) 1.3 VVT-i (87 Hp)
Start of production 2003 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 6.8 l/100 km
34.59 US mpg
41.54 UK mpg
14.71 km/l
Fuel consumption (economy) – extra urban 4.9 l/100 km
48 US mpg
57.65 UK mpg
20.41 km/l
Fuel consumption (economy) – combined 5.6 l/100 km
42 US mpg
50.44 UK mpg
17.86 km/l
CO2 emissions 133 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.1 sec
Acceleration 0 – 62 mph 12.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.5 sec
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 4
Weight-to-power ratio 10.3 kg/Hp, 97.2 Hp/tonne
Weight-to-torque ratio 7.3 kg/Nm, 136.3 Nm/tonne
Engine specs
Power 87 Hp @ 6000 rpm.
Power per litre 67 Hp/l
Torque 122 Nm @ 4200 rpm.
89.98 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code 2SZ-FE
Engine displacement 1298 cm3
79.21 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72 mm
2.83 in.
Piston Stroke 79.7 mm
3.14 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.7 l
4.97 US qt | 4.14 UK qt

Space, Volume and weights
Kerb Weight 895-980 kg
1973.14 – 2160.53 lbs.
Max. weight 1385 kg
3053.4 lbs.
Max load 405-490 kg
892.87 – 1080.27 lbs.
Trunk (boot) space – minimum 205 l
7.24 cu. ft.
Trunk (boot) space – maximum 950 l
33.55 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Permitted trailer load with brakes (12%) 900 kg
1984.16 lbs.
Permitted trailer load without brakes 400 kg
881.85 lbs.
Dimensions
Length 3640 mm
143.31 in.
Width 1660 mm
65.35 in.
Height 1500 mm
59.06 in.
Wheelbase 2370 mm
93.31 in.
Front track 1440 mm
56.69 in.
Rear (Back) track 1420 mm
55.91 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Trailing arm, Coil spring, Torsion
Front brakes Ventilated discs, 235 mm
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R14
Wheel rims size 5.5J x 14
