Specifications: Toyota Yaris III (facelift 2017) 1.5 VVT-i (100 Hp) Hybrid e-CVT 2017, 2018

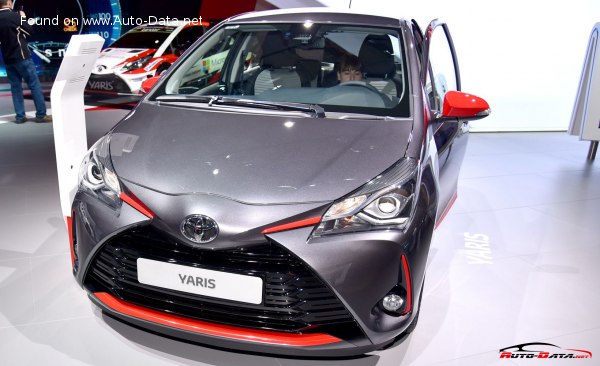

2017 Toyota Yaris III (facelift 2017) - Photo 1

Toyota Yaris III (facelift 2017) 1.5 VVT-i (100 Hp) Hybrid e-CVT – Full specifications
General information
Brand Toyota
Model Yaris
Generation Yaris III (facelift 2017)
Modification (Engine) 1.5 VVT-i (100 Hp) Hybrid e-CVT
Start of production 2017 year
End of production 2018 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 3.3-3.6 l/100 km
71.28 – 65.34 US mpg
85.6 – 78.47 UK mpg
30.3 – 27.78 km/l
Fuel consumption (economy) – extra urban 3.1-3.3 l/100 km
75.88 – 71.28 US mpg
91.12 – 85.6 UK mpg
32.26 – 30.3 km/l
Fuel consumption (economy) – combined 3.3-3.6 l/100 km
71.28 – 65.34 US mpg
85.6 – 78.47 UK mpg
30.3 – 27.78 km/l
CO2 emissions 75-82 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.8 sec
Acceleration 0 – 62 mph 11.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.2 sec
Maximum speed 165 km/h
102.53 mph
Emission standard Euro 6
Weight-to-power ratio 9.8 kg/Hp, 102 Hp/tonne
Weight-to-torque ratio 8.8 kg/Nm, 113.3 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.94 kWh
Battery voltage 144 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the rear seats
Electric motor 1
Electric motor power 61 Hp
Electric motor Torque 169 Nm

124.65 lb.-ft.
Electric motor location Integrated into the transmission
System power 100 Hp
Internal combustion engine specs
Power 75 Hp
Power per litre 50.1 Hp/l
Torque 111 Nm @ 3600-4400 rpm.
81.87 lb.-ft. @ 3600-4400 rpm.
Engine layout Front, Transverse
Engine Model/Code 1NZ-FXE
Engine displacement 1497 cm3
91.35 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 84.7 mm
3.33 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i
Engine oil capacity 3.7 l
3.91 US qt | 3.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.5 l
4.76 US qt | 3.96 UK qt

Space, Volume and weights
Kerb Weight 980-1040 kg
2160.53 – 2292.81 lbs.
Max. weight 1565 kg
3450.23 lbs.
Max load 525-585 kg
1157.43 – 1289.7 lbs.
Trunk (boot) space – minimum 286 l
10.1 cu. ft.
Trunk (boot) space – maximum 768 l
27.12 cu. ft.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 3945 mm
155.31 in.
Width 1695 mm
66.73 in.
Height 1510 mm
59.45 in.
Wheelbase 2510 mm
98.82 in.
Front track 1485 mm
58.46 in.
Rear (Back) track 1485 mm
58.46 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R15; 185/60 R15
Wheel rims size 5J x 15; 5.5J x 15
