Specifications: Toyota Yaris (XP210) 1.5 (130 Hp) Hybrid e-CVT 2023, 2024

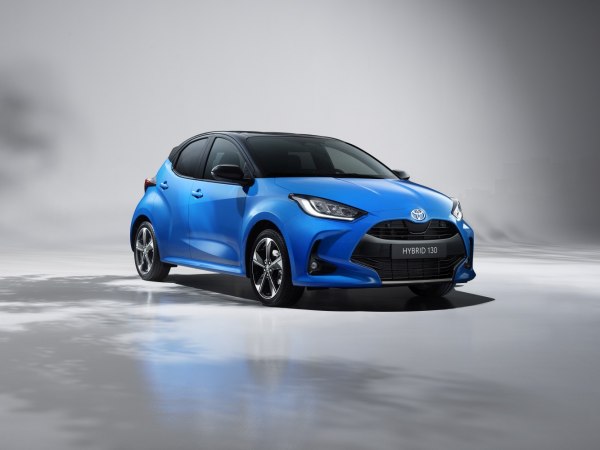

2020 Toyota Yaris (XP210) - Photo 1

Toyota Yaris (XP210) 1.5 (130 Hp) Hybrid e-CVT – Full specifications
General information
Brand Toyota
Model Yaris
Generation Yaris (XP210)
Modification (Engine) 1.5 (130 Hp) Hybrid e-CVT
Start of production 2023 year
End of production February, 2024 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 4.2-5.1 l/100 km
56 – 46.12 US mpg
67.26 – 55.39 UK mpg
23.81 – 19.61 km/l
CO2 emissions (WLTP) 96-116 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.2 sec
Acceleration 0 – 62 mph 9.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.7 sec
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 6 AP
Weight-to-power ratio 9 kg/Hp, 110.6 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 157.4 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Battery location Under the rear seats
Electric motor 1
Electric motor power 80 Hp
Electric motor Torque 141 Nm

104 lb.-ft.
Electric motor location Integrated into the transmission
System power 130 Hp
System torque 185 Nm
136.45 lb.-ft.
Internal combustion engine specs
Power 92 Hp @ 5500 rpm.
Power per litre 61.7 Hp/l
Torque 120 Nm @ 3600-4800 rpm.
88.51 lb.-ft. @ 3600-4800 rpm.
Engine layout Front, Transverse
Engine Model/Code M15A-FXE
Engine displacement 1490 cm3
90.93 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Compression ratio 14:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-iE, VVT-i
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5 l
5.28 US qt | 4.4 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1175-1180 kg
2590.43 – 2601.45 lbs.
Max. weight 1615 kg
3560.47 lbs.
Max load 435-440 kg
959.01 – 970.03 lbs.
Trunk (boot) space – minimum 286 l
10.1 cu. ft.
Trunk (boot) space – maximum 947 l
33.44 cu. ft.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Permitted trailer load with brakes (12%) 450 kg
992.08 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 50 kg
110.23 lbs.
Dimensions
Length 3940 mm
155.12 in.
Width 1695 mm
66.73 in.
Width including mirrors 1745 mm
68.7 in.
Height 1500 mm
59.06 in.
Wheelbase 2560 mm
100.79 in.
Front track 1521-1531 mm
59.88 – 60.28 in.
Rear (Back) track 1518-1528 mm
59.76 – 60.16 in.
Front overhang 790 mm
31.1 in.
Rear overhang 590 mm
23.23 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/55 R16
Wheel rims size 6J x 16
