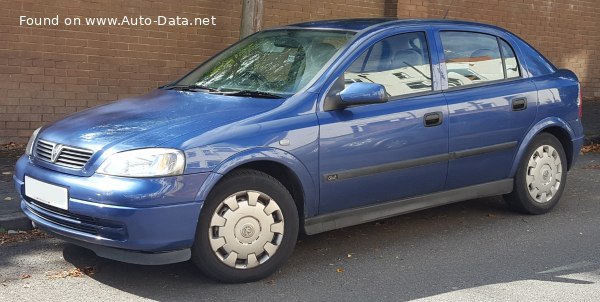

1998 Vauxhall Astra Mk IV CC - Photo 1

Vauxhall Astra Mk IV CC 1.7 DTI 16V (75 Hp) – Full specifications

General information
Brand Vauxhall
Model Astra
Generation Astra Mk IV CC
Modification (Engine) 1.7 DTI 16V (75 Hp)
Start of production 2000 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
Fuel consumption (economy) – extra urban 4.1 l/100 km
57.4 US mpg
68.9 UK mpg
24.4 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 15.5 sec
Acceleration 0 – 62 mph 15.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.7 sec
Maximum speed 165 km/h
102.53 mph
Engine specs
Power 75 Hp @ 4400 rpm.
Power per litre 44.5 Hp/l
Torque 165 Nm @ 1800 rpm.
121.7 lb.-ft. @ 1800 rpm.
Engine layout Front, Transverse
Engine Model/Code Y17DT
Engine displacement 1686 cm3
102.89 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 18.4:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt

Space, Volume and weights
Max. weight 1600 kg
3527.4 lbs.
Trunk (boot) space – minimum 370 l
13.07 cu. ft.
Trunk (boot) space – maximum 1180 l
41.67 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4110 mm
161.81 in.
Width 1710 mm
67.32 in.
Width including mirrors 1967 mm
77.44 in.
Height 1425 mm
56.1 in.
Wheelbase 2606 mm
102.6 in.
Ride height (ground clearance) 130 mm
5.12 in.
Minimum turning circle (turning diameter) 10 m
32.81 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front brakes Ventilated discs
Rear brakes Drum
Tires size 175/80 R14
Wheel rims size 14
