Specifications: Volkswagen Amarok I Double Cab 2.0 TDI (180 Hp) 4MOTION 2010, 2011, 2012, 2013, 2014, 2015, 2016

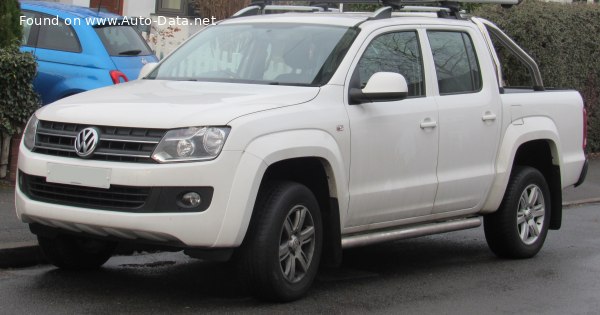

2010 Volkswagen Amarok I Double Cab - Photo 1

Volkswagen Amarok I Double Cab 2.0 TDI (180 Hp) 4MOTION – Full specifications
General information
Brand Volkswagen
Model Amarok
Generation Amarok I Double Cab
Modification (Engine) 2.0 TDI (180 Hp) 4MOTION
Start of production 2010 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.7-9.2 l/100 km
27 – 25.6 US mpg
32.5 – 30.7 UK mpg
11.5 – 10.9 km/l
Fuel consumption (economy) – extra urban 6.8-7.3 l/100 km
34.6 – 32.2 US mpg
41.5 – 38.7 UK mpg
14.7 – 13.7 km/l
Fuel consumption (economy) – combined 7.5-8.0 l/100 km
31.4 – 29.4 US mpg
37.7 – 35.3 UK mpg
13.3 – 12.5 km/l
CO2 emissions 197-211 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.6-11.0 sec
Acceleration 0 – 62 mph 10.6-11.0 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.1 sec
Maximum speed 178-183 km/h
110.6 – 113.71 mph
Emission standard Euro 5
Weight-to-power ratio 11 kg/Hp, 91 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 202.3 Nm/tonne
Engine specs
Power 180 Hp @ 4000 rpm.
Power per litre 91.5 Hp/l
Torque 400 Nm @ 1500-2250 rpm.
295.02 lb.-ft. @ 1500-2250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CNEA, CSHA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration BiTurbo, Intercooler
Valvetrain DOHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1977 kg
4358.54 lbs.
Max. weight 2820 kg
6217.04 lbs.
Max load 843 kg
1858.5 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 5254 mm
206.85 in.
Width 1944 mm
76.54 in.
Width including mirrors 2228 mm
87.72 in.
Height 1834 mm
72.2 in.
Wheelbase 3095 mm
121.85 in.
Front overhang 898 mm
35.35 in.
Rear overhang 1261 mm
49.65 in.
Ride height (ground clearance) 192 mm
7.56 in.
Minimum turning circle (turning diameter) 12.95 m
42.49 ft.
Approach angle 28°
Departure angle 23.6°
Ramp-over (brakeover) angle 21.4°
Wading depth 500 mm
19.69 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
