Specifications: Volkswagen Amarok I Double Cab (facelift 2016) 3.0 V6 TDI (258 Hp) 4MOTION Automatic 2018, 2019, 2020

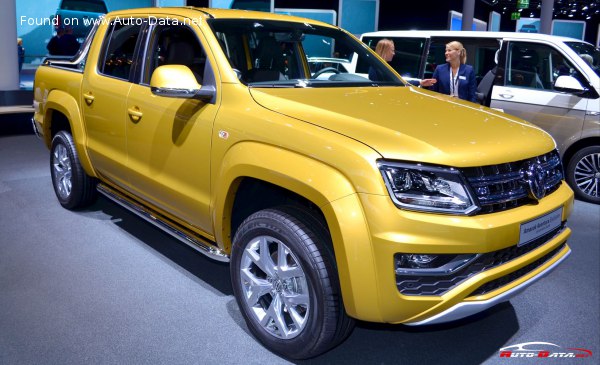

2016 Volkswagen Amarok I Double Cab (facelift 2016) - Photo 1

Volkswagen Amarok I Double Cab (facelift 2016) 3.0 V6 TDI (258 Hp) 4MOTION Automatic – Full specifications
General information
Brand Volkswagen
Model Amarok
Generation Amarok I Double Cab (facelift 2016)
Modification (Engine) 3.0 V6 TDI (258 Hp) 4MOTION Automatic
Start of production April, 2018 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 10.0-10.9 l/100 km
23.5 – 21.6 US mpg
28.2 – 25.9 UK mpg
10 – 9.2 km/l
CO2 emissions 231-232 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.4 sec
Acceleration 0 – 62 mph 7.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7 sec
Maximum speed 208 km/h
129.25 mph
Emission standard Euro 6d-TEMP
Weight-to-power ratio 8.4 kg/Hp, 118.3 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 266.1 Nm/tonne
Engine specs
Power 258 Hp @ 3250-4000 rpm.
Power per litre 86.9 Hp/l
Torque 580 Nm @ 1400-3000 rpm.
427.79 lb.-ft. @ 1400-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code DDXE
Engine displacement 2970 cm3
181.24 cu. in.
Number of cylinders 6
Engine configuration V-engine
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 8 l
8.45 US qt | 7.04 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 2180-2260 kg
4806.08 – 4982.45 lbs.
Max. weight 3290 kg
7253.21 lbs.
Max load 1030-1110 kg
2270.76 – 2447.13 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
AdBlue tank 13 l
3.43 US gal | 2.86 UK gal
Permitted trailer load with brakes (12%) 3100 kg
6834.33 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5254 mm
206.85 in.
Width 1954 mm
76.93 in.
Width including mirrors 2228 mm
87.72 in.
Height 1834 mm
72.2 in.
Wheelbase 3097 mm
121.93 in.
Front overhang 898 mm
35.35 in.
Rear overhang 1259 mm
49.57 in.
Ride height (ground clearance) 192 mm
7.56 in.
Minimum turning circle (turning diameter) 12.95 m
42.49 ft.
Approach angle 29.5°
Departure angle 18.0°
Ramp-over (brakeover) angle 15.6°
Wading depth 500 mm
19.69 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/60 R18 112T; 255/55 R19 111T; 255/50 R20 109H
Wheel rims size 7.5J x 18; 8J x 19; 8J x 20
