Specifications: Volkswagen Amarok I Single Cab 2.0 TDI (180 Hp) BMT Automatic 4MOTION 2010, 2011, 2012, 2013, 2014, 2015, 2016

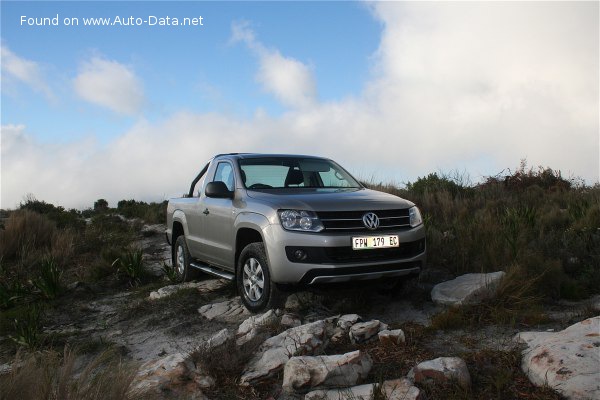

2010 Volkswagen Amarok I Single Cab - Photo 1

Volkswagen Amarok I Single Cab 2.0 TDI (180 Hp) BMT Automatic 4MOTION – Full specifications
General information
Brand Volkswagen
Model Amarok
Generation Amarok I Single Cab
Modification (Engine) 2.0 TDI (180 Hp) BMT Automatic 4MOTION
Start of production 2010 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 8.6-9.1 l/100 km
27.4 – 25.8 US mpg
32.8 – 31 UK mpg
11.6 – 11 km/l
Fuel consumption (economy) – extra urban 6.8-7.4 l/100 km
34.6 – 31.8 US mpg
41.5 – 38.2 UK mpg
14.7 – 13.5 km/l
Fuel consumption (economy) – combined 7.5-8.0 l/100 km
31.4 – 29.4 US mpg
37.7 – 35.3 UK mpg
13.3 – 12.5 km/l
CO2 emissions 197-211 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.6-11.0 sec
Acceleration 0 – 62 mph 10.6-11.0 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.1 sec
Maximum speed 173-178 km/h
107.5 – 110.6 mph
Emission standard Euro 5
Weight-to-power ratio 10.5 kg/Hp, 95 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 221.8 Nm/tonne
Engine specs
Power 180 Hp @ 4000 rpm.
Power per litre 91.5 Hp/l
Torque 420 Nm @ 1750 rpm.
309.78 lb.-ft. @ 1750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CNEA, CSHA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration BiTurbo, Intercooler
Valvetrain DOHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1894 kg
4175.56 lbs.
Max. weight 3040 kg
6702.05 lbs.
Max load 1146 kg
2526.5 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 5181 mm
203.98 in.
Width 1944 mm
76.54 in.
Width including mirrors 2228 mm
87.72 in.
Height 1820 mm
71.65 in.
Wheelbase 3095 mm
121.85 in.
Front overhang 898 mm
35.35 in.
Rear overhang 1188 mm
46.77 in.
Ride height (ground clearance) 192 mm
7.56 in.
Minimum turning circle (turning diameter) 12.95 m
42.49 ft.
Approach angle 28°
Departure angle 28°
Ramp-over (brakeover) angle 23°
Wading depth 500 mm
19.69 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
