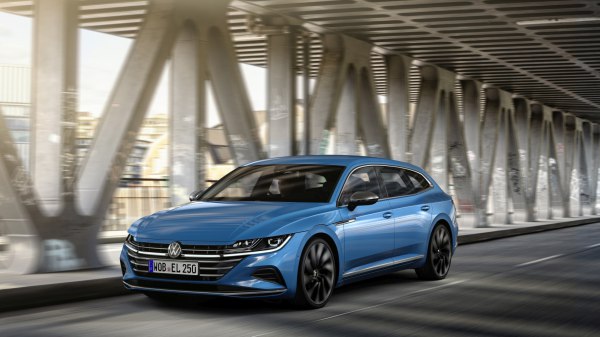

2021 Volkswagen Arteon Shooting Brake (facelift 2020) - Photo 1

Volkswagen Arteon Shooting Brake (facelift 2020) 2.0 TDI (193 Hp) 4MOTION DSG – Full specifications
General information
Brand Volkswagen
Model Arteon
Generation Arteon Shooting Brake (facelift 2020)
Modification (Engine) 2.0 TDI (193 Hp) 4MOTION DSG
Start of production 2024 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
CO2 emissions (WLTP) 155 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.6 sec
Acceleration 0 – 62 mph 7.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.2 sec
Maximum speed 230 km/h
142.92 mph
Emission standard Euro 6e
Weight-to-power ratio 8.5 kg/Hp, 117.3 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 243 Nm/tonne
Engine specs
Power 193 Hp
Power per litre 98.1 Hp/l
Torque 400 Nm @ 1750-3250 rpm.
295.02 lb.-ft. @ 1750-3250 rpm.
Engine layout Front, Transverse
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1646 kg
3628.81 lbs.
Max. weight 2290 kg
5048.59 lbs.
Max load 644 kg
1419.78 lbs.
Trunk (boot) space – minimum 590 l
20.84 cu. ft.
Trunk (boot) space – maximum 1632 l
57.63 cu. ft.
Fuel tank capacity 66 l
17.44 US gal | 14.52 UK gal
Permitted trailer load with brakes (12%) 2200 kg
4850.17 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4866 mm
191.57 in.
Width 1871 mm
73.66 in.
Width including mirrors 2127 mm
83.74 in.
Height 1451 mm
57.13 in.
Wheelbase 2836 mm
111.65 in.
Front track 1587-1591 mm
62.48 – 62.64 in.
Rear (Back) track 1579-1583 mm
62.17 – 62.32 in.
Minimum turning circle (turning diameter) 12 m
39.37 ft.
Approach angle 12.5°
Departure angle 12.2°
Ramp-over (brakeover) angle 10.2°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/45 R18; 245/40 R19; 245/35 R20
Wheel rims size 8J x 18; 8J x 19; 8J x 20
