Specifications: Volkswagen Atlas Cross Sport 2.0 TFSI (235 Hp) Automatic 2020, 2021, 2022, 2023

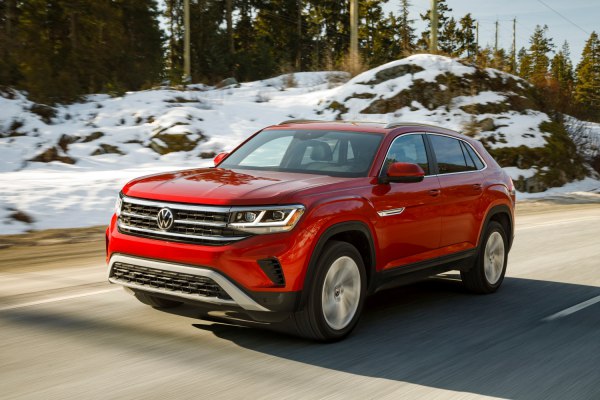

2020 Volkswagen Atlas Cross Sport - Photo 1

Volkswagen Atlas Cross Sport 2.0 TFSI (235 Hp) Automatic – Full specifications
General information
Brand Volkswagen
Model Atlas
Generation Atlas Cross Sport
Modification (Engine) 2.0 TFSI (235 Hp) Automatic
Start of production 2020 year
End of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.2 l/100 km
21 US mpg
25.2 UK mpg
8.9 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.8 UK mpg
10.2 km/l
Fuel consumption (economy) – combined 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.9 kg/Hp, 126.3 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 188.1 Nm/tonne
Engine specs
Power 235 Hp @ 4500 rpm.
Power per litre 118.4 Hp/l
Torque 350 Nm @ 1600 rpm.
258.15 lb.-ft. @ 1600 rpm.
Engine layout Front, Transverse
Engine Model/Code DCGA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1861 kg
4102.8 lbs.
Max. weight 2480 kg
5467.46 lbs.
Max load 619 kg
1364.66 lbs.
Trunk (boot) space – minimum 1141 l
40.29 cu. ft.
Trunk (boot) space – maximum 2203 l
77.8 cu. ft.
Fuel tank capacity 70.4 l
18.6 US gal | 15.49 UK gal
Permitted trailer load with brakes (12%) 907 kg
1999.59 lbs.
Dimensions
Length 4966 mm
195.51 in.
Width 1990 mm
78.35 in.
Height 1723 mm
67.83 in.
Wheelbase 2980 mm
117.32 in.
Front track 1702 mm
67.01 in.
Rear (Back) track 1718 mm
67.64 in.
Ride height (ground clearance) 203 mm
7.99 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 12.35 m
40.52 ft.
Approach angle 20.9°
Departure angle 26.7°
Ramp-over (brakeover) angle 17.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 335×30 mm
Rear brakes Disc, 310×23 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/60 R18; 255/50 R20
Wheel rims size 8J x 18; 8J x 20
