Specifications: Volkswagen Atlas (facelift 2023) 2.0 TSI (269 Hp) 4MOTION Tiptronic 2023, 2024, 2025

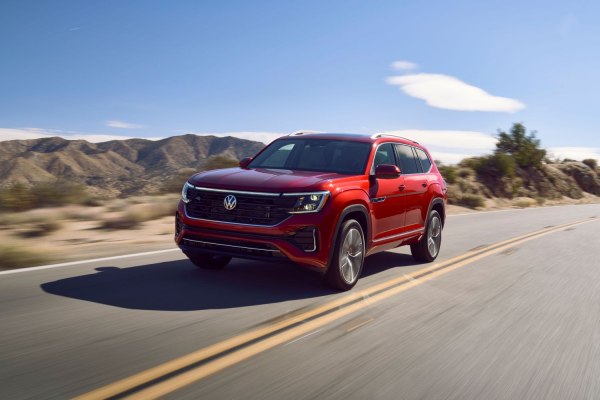

2024 Volkswagen Atlas (facelift 2023) - Photo 1

Volkswagen Atlas (facelift 2023) 2.0 TSI (269 Hp) 4MOTION Tiptronic – Full specifications
General information
Brand Volkswagen
Model Atlas
Generation Atlas (facelift 2023)
Modification (Engine) 2.0 TSI (269 Hp) 4MOTION Tiptronic
Start of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 12.4 l/100 km
19 US mpg
22.8 UK mpg
8.1 km/l
Fuel consumption (economy) – extra urban (EPA) 9 l/100 km
26.1 US mpg
31.4 UK mpg
11.1 km/l
Fuel consumption (economy) – combined (EPA) 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.6 kg/Hp, 131.3 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 180.6 Nm/tonne
Engine specs
Power 269 Hp @ 5500-6500 rpm.
Power per litre 135.6 Hp/l
Torque 370 Nm @ 1600-4750 rpm.
272.9 lb.-ft. @ 1600-4750 rpm.
Engine layout Front, Transverse
Engine Model/Code EA888 evo4
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC, VVT
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2049 kg
4517.27 lbs.
Max. weight 2690 kg
5930.43 lbs.
Max load 641 kg
1413.16 lbs.
Trunk (boot) space – minimum 583 l
20.59 cu. ft.
Trunk (boot) space – maximum 2735 l
96.59 cu. ft.
Fuel tank capacity 70.4 l
18.6 US gal | 15.49 UK gal
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5097 mm
200.67 in.
Width 1990 mm
78.35 in.
Width including mirrors 2249 mm
88.54 in.
Height 1787 mm
70.35 in.
Wheelbase 2980 mm
117.32 in.
Front track 1702 mm
67.01 in.
Rear (Back) track 1718 mm
67.64 in.
Ride height (ground clearance) 159 mm
6.26 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Approach angle 20.8°
Departure angle 21.1°
Ramp-over (brakeover) angle 17.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Tiptronic
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 335×30 mm
Rear brakes Ventilated discs, 310×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/60 R18; 255/50 R20; 265/45 R21
Wheel rims size 8J x 18; 20; 21
