Specifications: Volkswagen Beetle (A5) 2.0 TDI (110 Hp) 2014, 2015, 2016

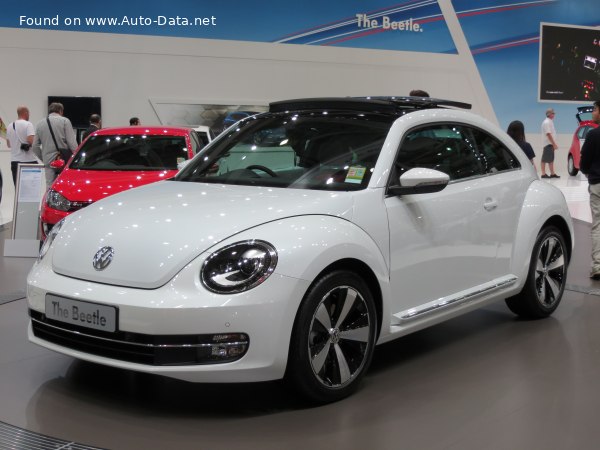

2012 Volkswagen Beetle (A5) - Photo 1

Volkswagen Beetle (A5) 2.0 TDI (110 Hp) – Full specifications
General information
Brand Volkswagen
Model Beetle
Generation Beetle (A5)
Modification (Engine) 2.0 TDI (110 Hp)
Start of production 2014 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption (economy) – extra urban 3.9 l/100 km
60.3 US mpg
72.4 UK mpg
25.6 km/l
Fuel consumption (economy) – combined 4.3 l/100 km
54.7 US mpg
65.7 UK mpg
23.3 km/l
CO2 emissions 112 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11 sec
Acceleration 0 – 62 mph 11 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 182 km/h
113.09 mph
Emission standard Euro 6
Weight-to-power ratio 12.5 kg/Hp, 79.7 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 181.2 Nm/tonne
Engine specs
Power 110 Hp @ 3500 rpm.
Power per litre 55.9 Hp/l
Torque 250 Nm @ 1750-3000 rpm.
184.39 lb.-ft. @ 1750-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code CUAA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1380 kg
3042.38 lbs.
Max. weight 1840 kg
4056.51 lbs.
Max load 460 kg
1014.13 lbs.
Trunk (boot) space – minimum 310 l
10.95 cu. ft.
Trunk (boot) space – maximum 905 l
31.96 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 50 kg
110.23 lbs.
Dimensions
Length 4278 mm
168.43 in.
Width 1808 mm
71.18 in.
Width including mirrors 2021 mm
79.57 in.
Height 1486 mm
58.5 in.
Wheelbase 2537 mm
99.88 in.
Front track 1578 mm
62.13 in.
Rear (Back) track 1544 mm
60.79 in.
Ride height (ground clearance) 136 mm
5.35 in.
Drag coefficient (Cd) 0.367
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Approach angle 13.5°
Departure angle 14.8°
Ramp-over (brakeover) angle 11°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/60 R16; 235/45 R18
Wheel rims size 6.5J x 16; 8J x 18
