Specifications: Volkswagen Bora (1J2) 2.3 VR5 20V (170 Hp) 4MOTION 2000, 2001, 2002, 2003, 2004, 2005

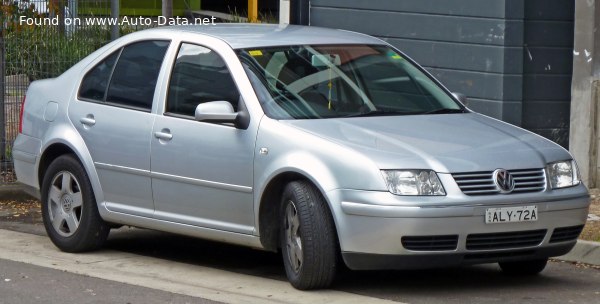

1999 Volkswagen Bora (1J2) - Photo 1

Volkswagen Bora (1J2) 2.3 VR5 20V (170 Hp) 4MOTION – Full specifications
General information
Brand Volkswagen
Model Bora
Generation Bora (1J2)
Modification (Engine) 2.3 VR5 20V (170 Hp) 4MOTION
Start of production 2000 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 14.1 l/100 km
16.7 US mpg
20 UK mpg
7.1 km/l
Fuel consumption (economy) – extra urban 7.6 l/100 km
30.9 US mpg
37.2 UK mpg
13.2 km/l
Fuel consumption (economy) – combined 10 l/100 km
23.5 US mpg
28.2 UK mpg
10 km/l
CO2 emissions 240 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.1 sec
Acceleration 0 – 62 mph 9.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.6 sec
Maximum speed 218 km/h
135.46 mph
Weight-to-power ratio 8.5 kg/Hp, 117.2 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 151.6 Nm/tonne
Engine specs
Power 170 Hp @ 6200 rpm.
Power per litre 73.1 Hp/l
Torque 220 Nm @ 3200 rpm.
162.26 lb.-ft. @ 3200 rpm.
Engine layout Front, Transverse
Engine Model/Code AQN
Engine displacement 2324 cm3
141.82 cu. in.
Number of cylinders 5
Engine configuration V-engine
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 90.2 mm
3.55 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3.9 l
4.12 US qt | 3.43 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1451 kg
3198.91 lbs.
Max. weight 1970 kg
4343.11 lbs.
Max load 519 kg
1144.2 lbs.
Trunk (boot) space – minimum 340 l
12.01 cu. ft.
Trunk (boot) space – maximum 670 l
23.66 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4376 mm
172.28 in.
Width 1735 mm
68.31 in.
Width including mirrors 2018 mm
79.45 in.
Height 1446 mm
56.93 in.
Wheelbase 2519 mm
99.17 in.
Front track 1513 mm
59.57 in.
Rear (Back) track 1494 mm
58.82 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 6.5J x 16
