Specifications: Volkswagen Bora Variant (1J6) 1.8 Turbo 20V (150 Hp) 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

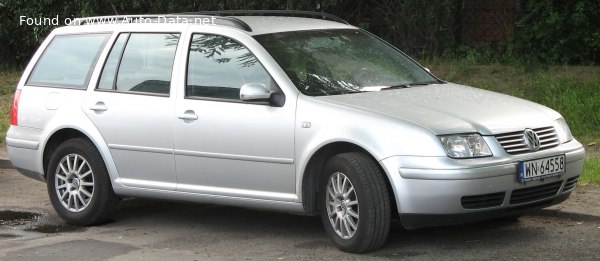

1999 Volkswagen Bora Variant (1J6) - Photo 1

Volkswagen Bora Variant (1J6) 1.8 Turbo 20V (150 Hp) – Full specifications
General information
Brand Volkswagen
Model Bora
Generation Bora Variant (1J6)
Modification (Engine) 1.8 Turbo 20V (150 Hp)
Start of production 1998 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.8 l/100 km
21.8 US mpg
26.2 UK mpg
9.3 km/l
Fuel consumption (economy) – extra urban 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
Fuel consumption (economy) – combined 7.4 l/100 km
31.8 US mpg
38.2 UK mpg
13.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.2 sec
Acceleration 0 – 62 mph 9.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.7 sec
Maximum speed 216 km/h
134.22 mph
Weight-to-power ratio 9.1 kg/Hp, 110.3 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 154.4 Nm/tonne
Engine specs
Power 150 Hp @ 5700 rpm.
Power per litre 84.2 Hp/l
Torque 210 Nm @ 1750 rpm.
154.89 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code AGU, AUM
Engine displacement 1781 cm3
108.68 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 9.5:1
Number of valves per cylinder 5
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5 l
5.28 US qt | 4.4 UK qt

Space, Volume and weights
Kerb Weight 1360 kg
2998.29 lbs.
Max. weight 1870 kg
4122.64 lbs.
Max load 510 kg
1124.36 lbs.
Trunk (boot) space – minimum 460 l
16.24 cu. ft.
Trunk (boot) space – maximum 1470 l
51.91 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4409 mm
173.58 in.
Width 1735 mm
68.31 in.
Height 1485 mm
58.46 in.
Wheelbase 2515 mm
99.02 in.
Front track 1513 mm
59.57 in.
Rear (Back) track 1494 mm
58.82 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 15
