Specifications: Volkswagen Caddy IV 1.4 TSI (131 Hp) 2018, 2019, 2020

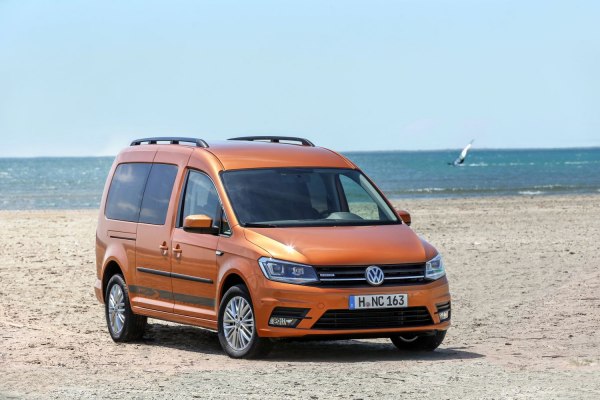

2015 Volkswagen Caddy IV - Photo 1

Volkswagen Caddy IV 1.4 TSI (131 Hp) – Full specifications
General information
Brand Volkswagen
Model Caddy
Generation Caddy IV
Modification (Engine) 1.4 TSI (131 Hp)
Start of production 2018 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 8.3 l/100 km
28.3 US mpg
34 UK mpg
12 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.8 l/100 km
40.6 US mpg
48.7 UK mpg
17.2 km/l
Fuel consumption (economy) – combined (NEDC) 6.7 l/100 km
35.1 US mpg
42.2 UK mpg
14.9 km/l
CO2 emissions (NEDC) 151 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.9 sec
Acceleration 0 – 62 mph 10.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.4 sec
Maximum speed 191 km/h
118.68 mph
Emission standard Euro 6d TEMP-EVAP
Weight-to-power ratio 10.2 kg/Hp, 98.3 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 165.2 Nm/tonne
Engine specs
Power 131 Hp @ 5000-6000 rpm.
Power per litre 93.9 Hp/l
Torque 220 Nm @ 1500-3500 rpm.
162.26 lb.-ft. @ 1500-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code EA211 / DJKD
Engine displacement 1395 cm3
85.13 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm
2.93 in.
Piston Stroke 80 mm
3.15 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1332 kg
2936.56 lbs.
Max. weight 2200 kg
4850.17 lbs.
Max load 868 kg
1913.61 lbs.
Trunk (boot) space – minimum 190 l
6.71 cu. ft.
Trunk (boot) space – maximum 3030 l
107 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4408 mm
173.54 in.
Width 1793 mm
70.59 in.
Width including mirrors 2079 mm
81.85 in.
Height 1858 mm
73.15 in.
Wheelbase 2682 mm
105.59 in.
Front overhang 879 mm
34.61 in.
Rear overhang 847 mm
33.35 in.
Ride height (ground clearance) 155 mm
6.1 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Approach angle 15.7°
Departure angle 17.5°
Ramp-over (brakeover) angle 13.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Transverse stabilizer, Leaf spring
Front brakes Ventilated discs, 288×25 mm
Rear brakes Disc, 272×10 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16
Wheel rims size 6J x 15; 6J x 16
