Specifications: Volkswagen Caddy Maxi III (facelift 2010) 2.0 TDI (140 Hp) BMT 2010, 2011, 2012, 2013, 2014, 2015

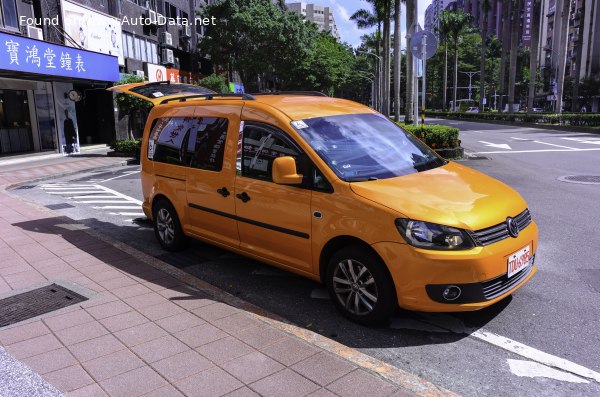

2010 Volkswagen Caddy Maxi III (facelift 2010) - Photo 1

Volkswagen Caddy Maxi III (facelift 2010) 2.0 TDI (140 Hp) BMT – Full specifications
General information
Brand Volkswagen
Model Caddy
Generation Caddy Maxi III (facelift 2010)
Modification (Engine) 2.0 TDI (140 Hp) BMT
Start of production 2010 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – combined 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
CO2 emissions 149 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 186 km/h
115.58 mph
Emission standard Euro 5
Weight-to-power ratio 10.8 kg/Hp, 93 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 212.6 Nm/tonne
Engine specs
Power 140 Hp @ 4200 rpm.
Power per litre 71.1 Hp/l
Torque 320 Nm @ 1750-2500 rpm.
236.02 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CFHC, CLCB
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1505 kg
3317.96 lbs.
Max. weight 2327 kg
5130.16 lbs.
Max load 822 kg
1812.2 lbs.
Trunk (boot) space – minimum 1650 l
58.27 cu. ft.
Trunk (boot) space – maximum 4130 l
145.85 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4876 mm
191.97 in.
Width 1794 mm
70.63 in.
Width including mirrors 2062 mm
81.18 in.
Height 1836 mm
72.28 in.
Wheelbase 3006 mm
118.35 in.
Front overhang 878 mm
34.57 in.
Rear overhang 992 mm
39.06 in.
Ride height (ground clearance) 157 mm
6.18 in.
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Leaf spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16; 205/50 R17
Wheel rims size 6J x 15; 6J x 16; 6J x 17
