Specifications: Volkswagen Caddy Maxi Panel Van IV 2.0 TDI (150 Hp) DSG 2015, 2016, 2017, 2018

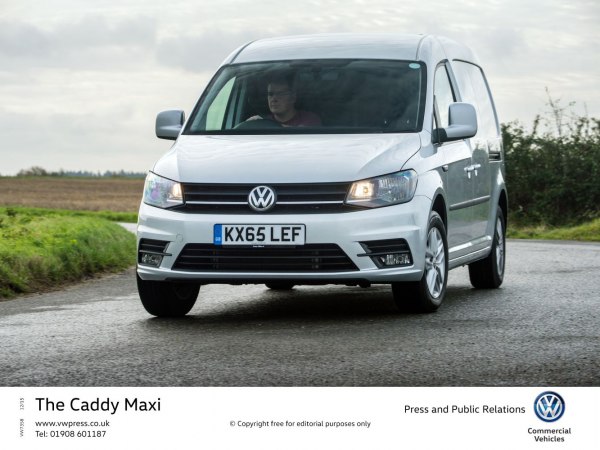

2015 Volkswagen Caddy Maxi Panel Van IV - Photo 1

Volkswagen Caddy Maxi Panel Van IV 2.0 TDI (150 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Caddy
Generation Caddy Maxi Panel Van IV
Modification (Engine) 2.0 TDI (150 Hp) DSG
Start of production June, 2015 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 2
Doors 4
Performance specs
Fuel consumption (economy) – urban 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
CO2 emissions 134 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.4 sec
Acceleration 0 – 62 mph 9.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.9 sec
Maximum speed 188 km/h
116.82 mph
Emission standard Euro 6
Weight-to-power ratio 10.2 kg/Hp, 97.9 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 221.9 Nm/tonne
Engine specs
Power 150 Hp @ 3500-4000 rpm.
Power per litre 76.2 Hp/l
Torque 340 Nm @ 1750-3000 rpm.
250.77 lb.-ft. @ 1750-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code CUUB, DFSB
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1532-1556 kg
3377.48 – 3430.39 lbs.
Max. weight 2333 kg
5143.38 lbs.
Max load 777-801 kg
1712.99 – 1765.9 lbs.
Trunk (boot) space – maximum 4200 l
148.32 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
AdBlue tank 9 l
2.38 US gal | 1.98 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4878 mm
192.05 in.
Width 1793 mm
70.59 in.
Width including mirrors 2065 mm
81.3 in.
Height 1836 mm
72.28 in.
Wheelbase 3006 mm
118.35 in.
Front overhang 879 mm
34.61 in.
Rear overhang 993 mm
39.09 in.
Ride height (ground clearance) 163 mm
6.42 in.
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Leaf spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 6J x 16
