Specifications: Volkswagen Caddy Maxi V 1.5 TSI (114 Hp) DSG 2020, 2021, 2022, 2023, 2024

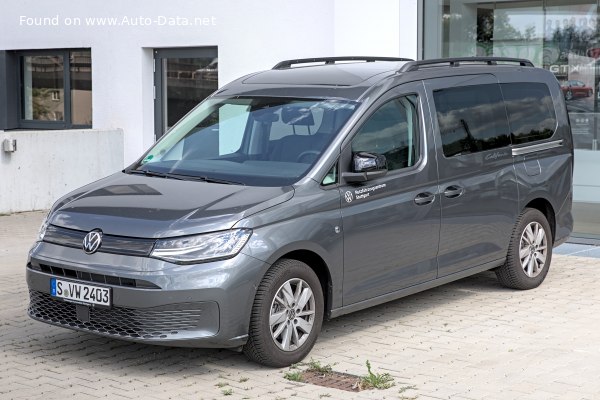

2021 Volkswagen Caddy Maxi V - Photo 1

Volkswagen Caddy Maxi V 1.5 TSI (114 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Caddy
Generation Caddy Maxi V
Modification (Engine) 1.5 TSI (114 Hp) DSG
Start of production 2020 year
End of production April, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5-7
Doors 4-5
Performance specs
Fuel consumption at Low speed (WLTP) 8.7-9 l/100 km
27 – 26.1 US mpg
32.5 – 31.4 UK mpg
11.5 – 11.1 km/l
Fuel consumption at Medium speed (WLTP) 6.6-7.1 l/100 km
35.6 – 33.1 US mpg
42.8 – 39.8 UK mpg
15.2 – 14.1 km/l
Fuel consumption at high speed (WLTP) 5.6-6 l/100 km
42 – 39.2 US mpg
50.4 – 47.1 UK mpg
17.9 – 16.7 km/l
Fuel consumption at very high speed (WLTP) 6.8-7.5 l/100 km
34.6 – 31.4 US mpg
41.5 – 37.7 UK mpg
14.7 – 13.3 km/l
Combined fuel consumption (WLTP) 6.6-7.2 l/100 km
35.6 – 32.7 US mpg
42.8 – 39.2 UK mpg
15.2 – 13.9 km/l
CO2 emissions (WLTP) 151-163 g/km
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 6.7-6.9 l/100 km
35.1 – 34.1 US mpg
42.2 – 40.9 UK mpg
14.9 – 14.5 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 5.8 l/100 km
40.6 US mpg
48.7 UK mpg
17.2 km/l
CO2 emissions (NEDC, WLTP equivalent) 134 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.4 sec
Acceleration 0 – 62 mph 12.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.8 sec
Maximum speed 181 km/h
112.47 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 14.6 kg/Hp, 68.6 Hp/tonne
Weight-to-torque ratio 7.6 kg/Nm, 132.5 Nm/tonne
Engine specs
Power 114 Hp @ 4500-6000 rpm.
Power per litre 76.1 Hp/l
Torque 220 Nm @ 1750-3000 rpm.
162.26 lb.-ft. @ 1750-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code EA211 evo / DPBC
Engine displacement 1498 cm3
91.41 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm
2.93 in.
Piston Stroke 85.9 mm
3.38 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1661-1686 kg
3661.88 – 3716.99 lbs.
Max. weight 2350 kg
5180.86 lbs.
Max load 664-689 kg
1463.87 – 1518.98 lbs.
Trunk (boot) space – minimum 446 l
15.75 cu. ft.
Trunk (boot) space – maximum 3105 l
109.65 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4853 mm
191.06 in.
Width 1855 mm
73.03 in.
Width including mirrors 2100 mm
82.68 in.
Height 1836 mm
72.28 in.
Wheelbase 2970 mm
116.93 in.
Front overhang 890 mm
35.04 in.
Rear overhang 993 mm
39.09 in.
Ride height (ground clearance) 143 mm
5.63 in.
Minimum turning circle (turning diameter) 12.1 m
39.7 ft.
Approach angle 14.7°
Departure angle 15.9°
Ramp-over (brakeover) angle 11.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Trailing arm, Coil spring
Front brakes Ventilated discs, 312×25 mm
Rear brakes Disc, 272×10 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R16; 215/55 R17
Wheel rims size 6.5J x 16; 6.5J x 17
