Specifications: Volkswagen Caravelle (T4) 1.9 TD (68 Hp) 1992, 1993, 1994, 1995

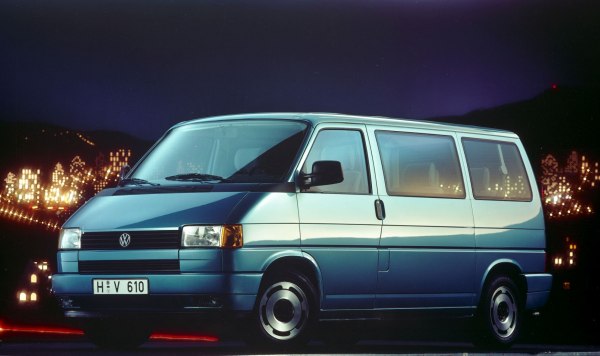

1991 Volkswagen Caravelle (T4) - Photo 1

Volkswagen Caravelle (T4) 1.9 TD (68 Hp) – Full specifications
General information
Brand Volkswagen
Model Caravelle
Generation Caravelle (T4)
Modification (Engine) 1.9 TD (68 Hp)
Start of production 1992 year
End of production 1995 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 6-9
Doors 4-5
Performance specs
Fuel consumption (economy) – urban 9 l/100 km
26.1 US mpg
31.4 UK mpg
11.1 km/l
Fuel consumption (economy) – extra urban 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
Fuel Type Diesel
Maximum speed 132 km/h
82.02 mph
Weight-to-power ratio 23 kg/Hp, 43.5 Hp/tonne
Weight-to-torque ratio 11.2 kg/Nm, 89.5 Nm/tonne
Engine specs
Power 68 Hp @ 3700 rpm.
Power per litre 35.9 Hp/l
Torque 140 Nm @ 2000-3000 rpm.
103.26 lb.-ft. @ 2000-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code ABL
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 22.5:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Turbocharger
Valvetrain SOHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1565 kg
3450.23 lbs.
Max. weight 2465-2650 kg
5434.39 – 5842.25 lbs.
Max load 900-1085 kg
1984.16 – 2392.02 lbs.
Trunk (boot) space – maximum 5400 l
190.7 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4655 mm
183.27 in.
Width 1840 mm
72.44 in.
Height 1940 mm
76.38 in.
Wheelbase 2920 mm
114.96 in.
Front track 1589 mm
62.56 in.
Rear (Back) track 1554 mm
61.18 in.
Front overhang 860 mm
33.86 in.
Rear overhang 875 mm
34.45 in.
Ride height (ground clearance) 180 mm
7.09 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11.7 m
38.39 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent torsion bar, double wishbone, Transverse stabilizer
Rear suspension Independent coil spring, Trailing arm
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/70 R15; 205/65 R15; 215/65 R15
Wheel rims size 6J x 15; 7J x 15
