Specifications: Volkswagen Cross Touran I 2.0 TDI (140 Hp) DSG 2007, 2008, 2009, 2010

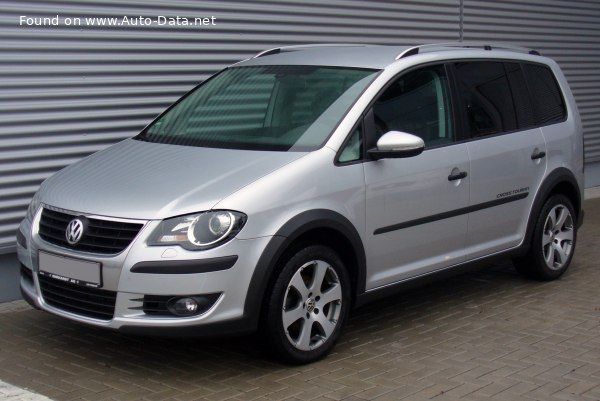

2007 Volkswagen Cross Touran I - Photo 1

Volkswagen Cross Touran I 2.0 TDI (140 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Touran
Generation Cross Touran I
Modification (Engine) 2.0 TDI (140 Hp) DSG
Start of production 2007 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
Fuel consumption (economy) – combined (NEDC) 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
CO2 emissions (NEDC) 180 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.6 sec
Acceleration 0 – 62 mph 10.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.1 sec
Maximum speed 192 km/h
119.3 mph
Emission standard Euro 4
Weight-to-power ratio 11.4 kg/Hp, 87.8 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 200.8 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 71.1 Hp/l
Torque 320 Nm @ 1800 rpm.
236.02 lb.-ft. @ 1800 rpm.
Engine layout Front, Transverse
Engine Model/Code EA188 / BMM
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18.5:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1594 kg
3514.17 lbs.
Max. weight 2210 kg
4872.22 lbs.
Max load 616 kg
1358.05 lbs.
Trunk (boot) space – minimum 695 l
24.54 cu. ft.
Trunk (boot) space – maximum 1989 l
70.24 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4407 mm
173.5 in.
Width 1799 mm
70.83 in.
Width including mirrors 2047 mm
80.59 in.
Height 1670 mm
65.75 in.
Wheelbase 2677 mm
105.39 in.
Front track 1550 mm
61.02 in.
Rear (Back) track 1531 mm
60.28 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Approach angle 14.1°
Departure angle 18.7°
Ramp-over (brakeover) angle 12°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 215/50 R17
Rear wheel tires: 235/45 R17
Wheel rims size Front wheel rims: 6.5J x 17
Rear wheel rims: 8J x 17
