Specifications: Volkswagen Cross Touran I (facelift 2010) 2.0 TDI (170 Hp) DSG 2010, 2011, 2012, 2013

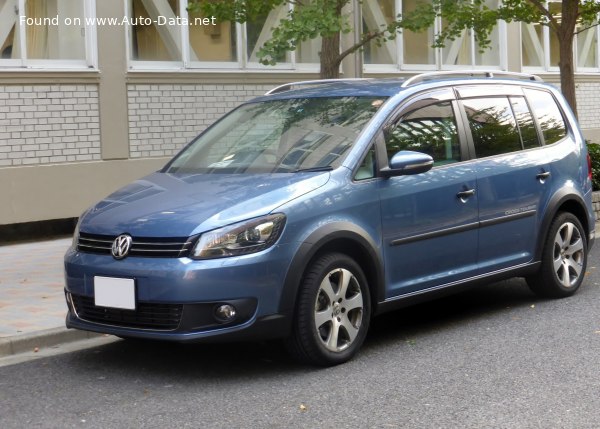

2010 Volkswagen Cross Touran I (facelift 2010) - Photo 1

Volkswagen Cross Touran I (facelift 2010) 2.0 TDI (170 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Touran
Generation Cross Touran I (facelift 2010)
Modification (Engine) 2.0 TDI (170 Hp) DSG
Start of production August, 2010 year
End of production June, 2013 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 7 l/100 km
33.6 US mpg
40.4 UK mpg
14.3 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel consumption (economy) – combined (NEDC) 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
CO2 emissions (NEDC) 155 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.9 sec
Acceleration 0 – 62 mph 8.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.5 sec
Maximum speed 207 km/h
128.62 mph
Emission standard Euro 5
Weight-to-power ratio 9.2 kg/Hp, 109 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 224.5 Nm/tonne
Engine specs
Power 170 Hp @ 4200 rpm.
Power per litre 86.4 Hp/l
Torque 350 Nm @ 1750-2500 rpm.
258.15 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CFJA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1559 kg
3437.01 lbs.
Max. weight 2200 kg
4850.17 lbs.
Max load 641 kg
1413.16 lbs.
Trunk (boot) space – minimum 695 l
24.54 cu. ft.
Trunk (boot) space – maximum 1989 l
70.24 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4406 mm
173.46 in.
Width 1799 mm
70.83 in.
Width including mirrors 2081 mm
81.93 in.
Height 1685 mm
66.34 in.
Wheelbase 2677 mm
105.39 in.
Front track 1550 mm
61.02 in.
Rear (Back) track 1531 mm
60.28 in.
Ride height (ground clearance) 152 mm
5.98 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Approach angle 13.5°
Departure angle 16.9°
Ramp-over (brakeover) angle 10.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Coil spring, Wishbone, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 215/50 R17
Rear wheel tires: 235/45 R17
Wheel rims size Front wheel rims: 6.5J x 17
Rear wheel rims: 8J x 17
