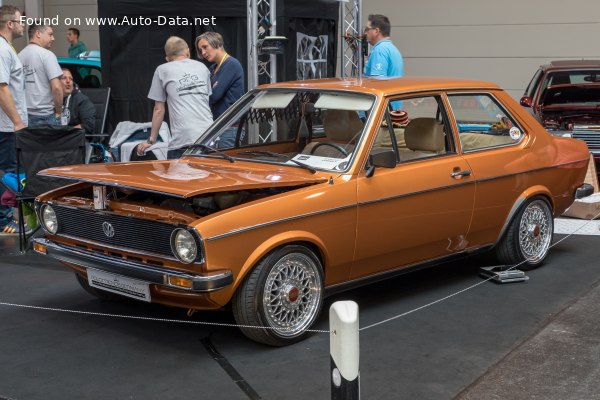

| General information | |
|---|---|
| Brand | Volkswagen |
| Model | Derby |
| Generation | Derby (86) |
| Modification (Engine) | 1.1 (50 Hp) |
| Start of production | 1977 year |
| End of production | 1981 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 2 |
| Performance specs | |
| Fuel consumption (economy) – urban | 9.1 l/100 km 25.8 US mpg 31 UK mpg 11 km/l |
| Fuel consumption (economy) – extra urban | 6.4 l/100 km 36.8 US mpg 44.1 UK mpg 15.6 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 60 mph | 15.4 sec |
| Maximum speed | 145 km/h 90.1 mph |
| Weight-to-power ratio | 14 kg/Hp, 71.4 Hp/tonne |
| Weight-to-torque ratio | 9.1 kg/Nm, 110 Nm/tonne |
| Engine specs | |
| Power | 50 Hp @ 5900 rpm. |
| Power per litre | 45.7 Hp/l |
| Torque | 77 Nm @ 3500 rpm. 56.79 lb.-ft. @ 3500 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | HB |
| Engine displacement | 1093 cm3 66.7 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 69.5 mm 2.74 in. |
| Piston Stroke | 72 mm 2.83 in. |
| Compression ratio | 8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine oil capacity | 3.5 l 3.7 US qt | 3.08 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 700 kg 1543.24 lbs. |
| Max. weight | 1130 kg 2491.22 lbs. |
| Max load | 430 kg 947.99 lbs. |
| Trunk (boot) space – minimum | 515 l 18.19 cu. ft. |
| Fuel tank capacity | 36 l 9.51 US gal | 7.92 UK gal |
| Permitted trailer load with brakes (12%) | 650 kg 1433 lbs. |
| Permitted trailer load without brakes | 380 kg 837.76 lbs. |
| Dimensions | |
| Length | 3914 mm 154.09 in. |
| Width | 1557 mm 61.3 in. |
| Height | 1351 mm 53.19 in. |
| Wheelbase | 2329 mm 91.69 in. |
| Front track | 1295 mm 50.98 in. |
| Rear (Back) track | 1313 mm 51.69 in. |
| Ride height (ground clearance) | 97 mm 3.82 in. |
| Minimum turning circle (turning diameter) | 9.6 m 31.5 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, manual transmission |
| Front suspension | Wishbone, Transverse stabilizer |
| Rear suspension | Trailing arm, Torsion |
| Front brakes | Disc |
| Rear brakes | Drum |
| Steering type | Steering rack and pinion |
| Wheel rims size | Front wheel rims: 4.5J x 13 Rear wheel rims: 4.5J x 13 |
