Specifications: Volkswagen Eos 2.0 16V TFSI (200 Hp) 2006, 2007, 2008, 2009

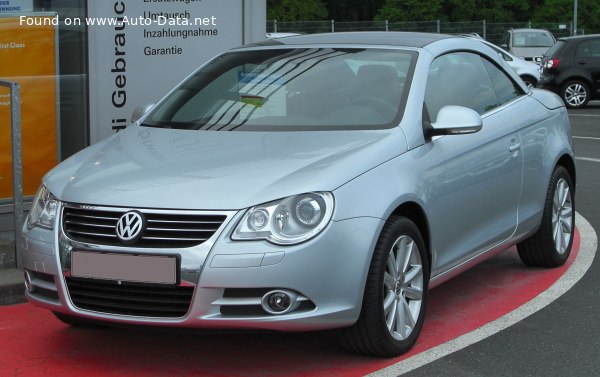

2006 Volkswagen Eos - Photo 1

Volkswagen Eos 2.0 16V TFSI (200 Hp) – Full specifications
General information
Brand Volkswagen
Model Eos
Generation Eos
Modification (Engine) 2.0 16V TFSI (200 Hp)
Start of production March, 2006 year
End of production November, 2009 year
Powertrain Architecture Internal Combustion engine
Body type Coupe – Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 11.2 l/100 km
21 US mpg
25.2 UK mpg
8.9 km/l
Fuel consumption (economy) – extra urban 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel consumption (economy) – combined 8.2 l/100 km
28.7 US mpg
34.4 UK mpg
12.2 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 232 km/h
144.16 mph
Weight-to-power ratio 7.7 kg/Hp, 130 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 181.9 Nm/tonne
Engine specs
Power 200 Hp @ 5100 rpm.
Power per litre 100.8 Hp/l
Torque 280 Nm @ 1800 rpm.
206.52 lb.-ft. @ 1800 rpm.
Engine layout Front, Transverse
Engine Model/Code BWA, CCZA, CAWB
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1539 kg
3392.91 lbs.
Max. weight 2000 kg
4409.25 lbs.
Max load 461 kg
1016.33 lbs.
Trunk (boot) space – minimum 205 l
7.24 cu. ft.
Trunk (boot) space – maximum 380 l
13.42 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4407 mm
173.5 in.
Width 1791 mm
70.51 in.
Height 1443 mm
56.81 in.
Wheelbase 2578 mm
101.5 in.
Front track 1545 mm
60.83 in.
Rear (Back) track 1553 mm
61.14 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/55 R16
Wheel rims size 7J x 16
