Specifications: Volkswagen Gol (G5) III (facelift 2013) 1.6 Total Flex (103 Hp) 2013, 2014, 2015, 2016

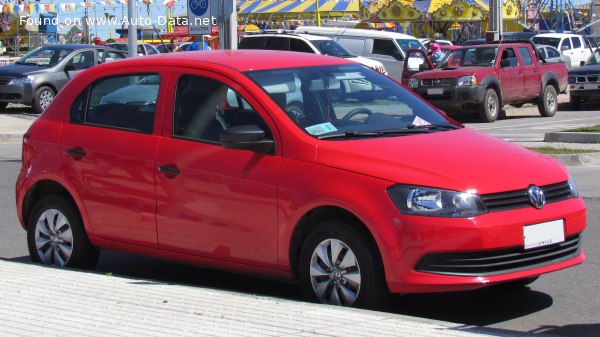

2013 Volkswagen Gol (G5) III (facelift 2013) - Photo 1

Volkswagen Gol (G5) III (facelift 2013) 1.6 Total Flex (103 Hp) – Full specifications
General information
Brand Volkswagen
Model Gol
Generation Gol (G5) III (facelift 2013)
Modification (Engine) 1.6 Total Flex (103 Hp)
Start of production 2013 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel Type Petrol / Ethanol – E85
Acceleration 0 – 100 km/h 9.8 sec
Acceleration 0 – 62 mph 9.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.3 sec
Maximum speed 190 km/h
118.06 mph
Weight-to-power ratio 9.3 kg/Hp, 107.2 Hp/tonne
Weight-to-torque ratio 6.3 kg/Nm, 159.2 Nm/tonne
Engine specs
Power 103 Hp @ 5250 rpm.
Power per litre 64.5 Hp/l
Torque 153 Nm @ 2500 rpm.
112.85 lb.-ft. @ 2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CCRA
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 86.9 mm
3.42 in.
Compression ratio 12.1:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 961 kg
2118.64 lbs.
Trunk (boot) space – minimum 285 l
10.06 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 400 kg
881.85 lbs.
Permitted trailer load without brakes 400 kg
881.85 lbs.
Dimensions
Length 3895 mm
153.35 in.
Width 1656 mm
65.2 in.
Width including mirrors 1893 mm
74.53 in.
Height 1464 mm
57.64 in.
Wheelbase 2465 mm
97.05 in.
Front track 1429 mm
56.26 in.
Rear (Back) track 1417 mm
55.79 in.
Ride height (ground clearance) 163 mm
6.42 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/70 R14; 185/60 R14; 195/55 R15; 195/50 R16
Wheel rims size 5J x 14; 6J x 14; 6J x 15; 6J x 16
