Specifications: Volkswagen Golf II (5-door, facelift 1987) 1.6 D (54 Hp) Automatic 1987, 1988, 1989, 1990, 1991

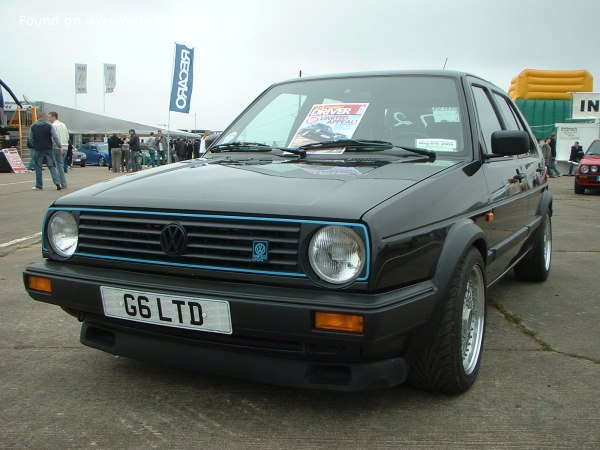

1988 Volkswagen Golf II (5-door, facelift 1987) - Photo 1

Volkswagen Golf II (5-door, facelift 1987) 1.6 D (54 Hp) Automatic – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf II (5-door, facelift 1987)
Modification (Engine) 1.6 D (54 Hp) Automatic
Start of production 1987 year
End of production 1991 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
Fuel consumption (economy) – extra urban 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 22.9 sec
Acceleration 0 – 62 mph 22.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 21.8 sec
Maximum speed 143 km/h
88.86 mph
Weight-to-power ratio 17.8 kg/Hp, 56.3 Hp/tonne
Weight-to-torque ratio 9.6 kg/Nm, 104.2 Nm/tonne
Engine specs
Power 54 Hp @ 4800 rpm.
Power per litre 34 Hp/l
Torque 100 Nm @ 2300-2900 rpm.
73.76 lb.-ft. @ 2300-2900 rpm.
Engine layout Front, Transverse
Engine Model/Code JP
Engine displacement 1588 cm3
96.91 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 23:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt

Space, Volume and weights
Kerb Weight 960 kg
2116.44 lbs.
Max. weight 1465 kg
3229.77 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 330 l
11.65 cu. ft.
Trunk (boot) space – maximum 1145 l
40.44 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 800 kg
1763.7 lbs.
Permitted trailer load without brakes 480 kg
1058.22 lbs.
Dimensions
Length 3985-4040 mm
156.89 – 159.06 in.
Width 1665 mm
65.55 in.
Height 1415 mm
55.71 in.
Wheelbase 2475 mm
97.44 in.
Front track 1427 mm
56.18 in.
Rear (Back) track 1422 mm
55.98 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 3 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Elastic beam
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Tires size 155/65 R13
Wheel rims size 5J x 13
