Specifications: Volkswagen Golf III Variant 1.9 TDI (90 Hp) Automatic 1994, 1995, 1996, 1997, 1998, 1999

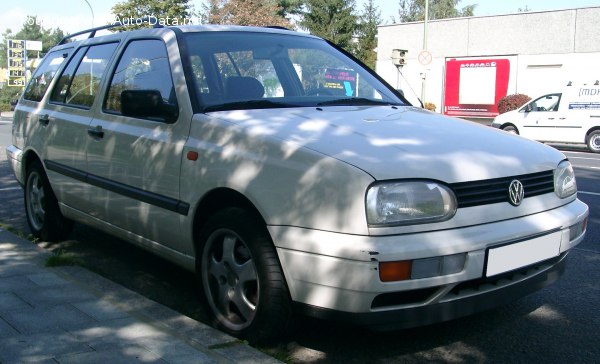

1994 Volkswagen Golf III Variant - Photo 1

Volkswagen Golf III Variant 1.9 TDI (90 Hp) Automatic – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf III Variant
Modification (Engine) 1.9 TDI (90 Hp) Automatic
Start of production 1994 year
End of production 1999 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.9 l/100 km
26.4 US mpg
31.7 UK mpg
11.2 km/l
Fuel consumption (economy) – extra urban 4.8 l/100 km
49 US mpg
58.9 UK mpg
20.8 km/l
Fuel consumption (economy) – combined 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.1 sec
Acceleration 0 – 62 mph 13.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.4 sec
Maximum speed 176 km/h
109.36 mph
Weight-to-power ratio 14.1 kg/Hp, 70.9 Hp/tonne
Weight-to-torque ratio 6.3 kg/Nm, 159.1 Nm/tonne
Engine specs
Power 90 Hp @ 4000 rpm.
Power per litre 47.5 Hp/l
Torque 202 Nm @ 1900 rpm.
148.99 lb.-ft. @ 1900 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1Z
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 19.5:1
Number of valves per cylinder 2
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1270 kg
2799.87 lbs.
Max. weight 1695 kg
3736.84 lbs.
Max load 425 kg
936.96 lbs.
Trunk (boot) space – minimum 466 l
16.46 cu. ft.
Trunk (boot) space – maximum 1426 l
50.36 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4340 mm
170.87 in.
Width 1695 mm
66.73 in.
Height 1430 mm
56.3 in.
Wheelbase 2475 mm
97.44 in.
Front track 1478 mm
58.19 in.
Rear (Back) track 1462 mm
57.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Suspension with traction connecting levers
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/60 R14
Wheel rims size 14
