Specifications: Volkswagen Golf IV Variant 1.9 TDI (101 Hp) 4motion 2000, 2001, 2002, 2003, 2004, 2005, 2006

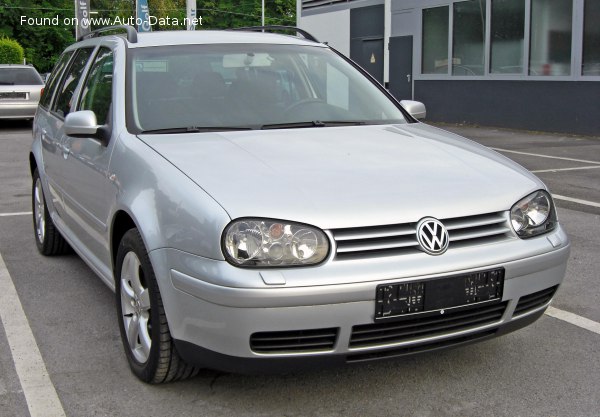

1999 Volkswagen Golf IV Variant - Photo 1

Volkswagen Golf IV Variant 1.9 TDI (101 Hp) 4motion – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf IV Variant
Modification (Engine) 1.9 TDI (101 Hp) 4motion
Start of production February, 2000 year
End of production June, 2006 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.2 l/100 km
28.7 US mpg
34.4 UK mpg
12.2 km/l
Fuel consumption (economy) – extra urban 5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.9 sec
Acceleration 0 – 62 mph 12.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.3 sec
Maximum speed 185 km/h
114.95 mph
Weight-to-power ratio 14 kg/Hp, 71.2 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 169.3 Nm/tonne
Engine specs
Power 101 Hp @ 4000 rpm.
Power per litre 53.3 Hp/l
Torque 240 Nm @ 1800 rpm.
177.01 lb.-ft. @ 1800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ATD
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 19:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1418 kg
3126.15 lbs.
Max. weight 1940 kg
4276.97 lbs.
Max load 522 kg
1150.81 lbs.
Trunk (boot) space – minimum 360 l
12.71 cu. ft.
Trunk (boot) space – maximum 1370 l
48.38 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Dimensions
Length 4397 mm
173.11 in.
Width 1735 mm
68.31 in.
Height 1437 mm
56.57 in.
Wheelbase 2518 mm
99.13 in.
Front track 1513 mm
59.57 in.
Rear (Back) track 1487 mm
58.54 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15 V
Wheel rims size 6J x 15
