Specifications: Volkswagen Golf V (3-door) 2.0 TDI 16V (140 Hp) 4MOTION 2004, 2005, 2006, 2007, 2008

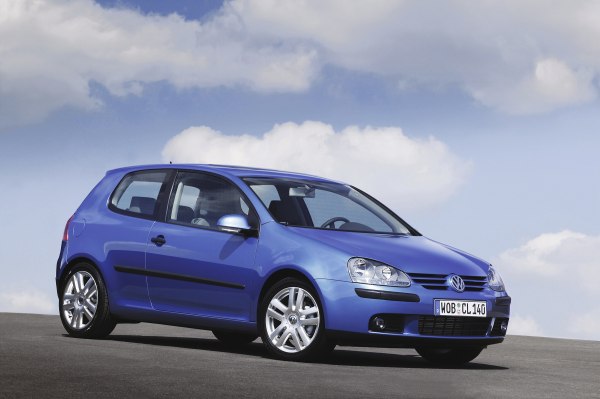

2004 Volkswagen Golf V (3-door) - Photo 1

Volkswagen Golf V (3-door) 2.0 TDI 16V (140 Hp) 4MOTION – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf V (3-door)
Modification (Engine) 2.0 TDI 16V (140 Hp) 4MOTION
Start of production 2004 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.7-7.9 l/100 km
30.5 – 29.8 US mpg
36.7 – 35.8 UK mpg
13 – 12.7 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.9-5.1 l/100 km
48 – 46.1 US mpg
57.6 – 55.4 UK mpg
20.4 – 19.6 km/l
Fuel consumption (economy) – combined (NEDC) 5.9-6.1 l/100 km
39.9 – 38.6 US mpg
47.9 – 46.3 UK mpg
16.9 – 16.4 km/l
CO2 emissions (NEDC) 159-165 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.5 sec
Acceleration 0 – 62 mph 9.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9 sec
Maximum speed 203 km/h
126.14 mph
Emission standard Euro 4
Weight-to-power ratio 10.1 kg/Hp, 98.9 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 226 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 71.1 Hp/l
Torque 320 Nm @ 1750-2500 rpm.
236.02 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code EA188 / BKD
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18.5:1
Number of valves per cylinder 4
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1416-1576 kg
3121.75 – 3474.49 lbs.
Max. weight 1980 kg
4365.15 lbs.
Max load 404-564 kg
890.67 – 1243.41 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 1305 l
46.09 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 740 kg
1631.42 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4204 mm
165.51 in.
Width 1759 mm
69.25 in.
Width including mirrors 2010 mm
79.13 in.
Height 1485 mm
58.46 in.
Wheelbase 2578 mm
101.5 in.
Front track 1539 mm
60.59 in.
Rear (Back) track 1528 mm
60.16 in.
Front overhang 880 mm
34.65 in.
Rear overhang 746 mm
29.37 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Approach angle 13.9°
Departure angle 14.2°
Ramp-over (brakeover) angle 9.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16; 225/45 R17; 225/40 R18
Wheel rims size 6J x 15; 6.5J x 15; 6.5J x 16; 7J x 17; 7.5J x 18
