Specifications: Volkswagen Golf V (3-door) R32 3.2 V6 (250 Hp) 4MOTION 2005, 2006, 2007, 2008

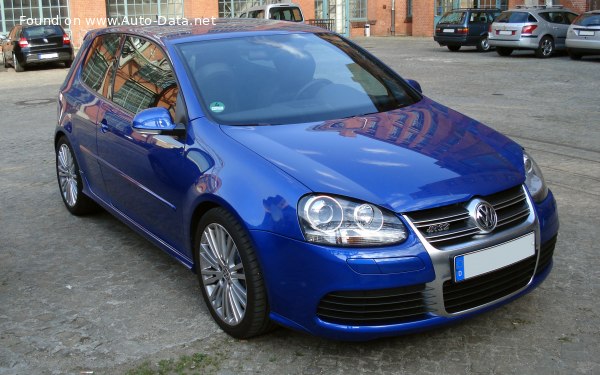

2004 Volkswagen Golf V (3-door) - Photo 1

Volkswagen Golf V (3-door) R32 3.2 V6 (250 Hp) 4MOTION – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf V (3-door)
Modification (Engine) R32 3.2 V6 (250 Hp) 4MOTION
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 14.9-15 l/100 km
15.8 – 15.7 US mpg
19 – 18.8 UK mpg
6.7 – 6.7 km/l
Fuel consumption (economy) – extra urban (NEDC) 8.3-8.4 l/100 km
28.3 – 28 US mpg
34 – 33.6 UK mpg
12 – 11.9 km/l
Fuel consumption (economy) – combined (NEDC) 10.7-10.8 l/100 km
22 – 21.8 US mpg
26.4 – 26.2 UK mpg
9.3 – 9.3 km/l
CO2 emissions (NEDC) 255-259 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.5 sec
Acceleration 0 – 62 mph 6.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.2 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 4
Weight-to-power ratio 6 kg/Hp, 165.6 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 211.9 Nm/tonne
Engine specs
Power 250 Hp @ 6300 rpm.
Power per litre 78.4 Hp/l
Torque 320 Nm @ 2800-3000 rpm.
236.02 lb.-ft. @ 2800-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code BUB, CBRA
Engine displacement 3189 cm3
194.6 cu. in.
Number of cylinders 6
Engine configuration VR-engine
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 95.9 mm
3.78 in.
Compression ratio 10.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1510-1590 kg
3328.98 – 3505.35 lbs.
Max. weight 2080 kg
4585.62 lbs.
Max load 490-570 kg
1080.27 – 1256.63 lbs.
Trunk (boot) space – minimum 275 l
9.71 cu. ft.
Trunk (boot) space – maximum 1230 l
43.44 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4246 mm
167.17 in.
Width 1759 mm
69.25 in.
Width including mirrors 2010 mm
79.13 in.
Height 1498 mm
58.98 in.
Wheelbase 2578 mm
101.5 in.
Front track 1533 mm
60.35 in.
Rear (Back) track 1515 mm
59.65 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Approach angle 11°
Departure angle 11.9°
Ramp-over (brakeover) angle 11.1°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/40 R18
Wheel rims size 7.5J x 18
