Specifications: Volkswagen Golf V (5-door) 1.4 FSI (90 Hp) 2003, 2004, 2005, 2006

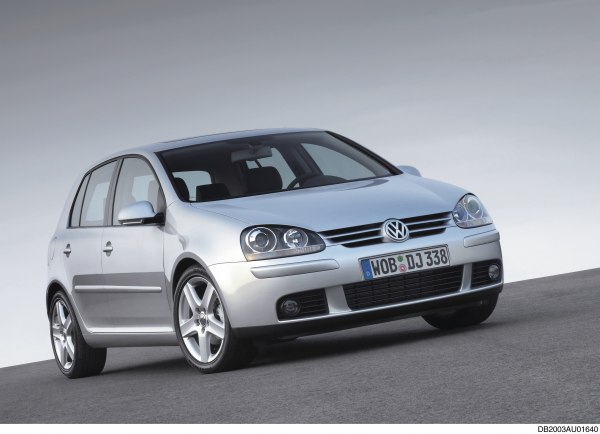

2004 Volkswagen Golf V (5-door) - Photo 1

Volkswagen Golf V (5-door) 1.4 FSI (90 Hp) – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf V (5-door)
Modification (Engine) 1.4 FSI (90 Hp)
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 8.7 l/100 km
27 US mpg
32.5 UK mpg
11.5 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel consumption (economy) – combined (NEDC) 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
CO2 emissions (NEDC) 156 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.9 sec
Acceleration 0 – 62 mph 12.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.3 sec
Maximum speed 174 km/h
108.12 mph
Emission standard Euro 4
Weight-to-power ratio 13.4 kg/Hp, 74.9 Hp/tonne
Weight-to-torque ratio 9.2 kg/Nm, 108.2 Nm/tonne
Engine specs
Power 90 Hp @ 5200 rpm.
Power per litre 64.7 Hp/l
Torque 130 Nm @ 3750 rpm.
95.88 lb.-ft. @ 3750 rpm.
Engine layout Front, Transverse
Engine Model/Code BKG, BLN
Engine displacement 1390 cm3
84.82 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 75.6 mm
2.98 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt

Space, Volume and weights
Kerb Weight 1202 kg
2649.96 lbs.
Max. weight 1750 kg
3858.09 lbs.
Max load 548 kg
1208.13 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 1305 l
46.09 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 620 kg
1366.87 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4204 mm
165.51 in.
Width 1759 mm
69.25 in.
Width including mirrors 2010 mm
79.13 in.
Height 1485 mm
58.46 in.
Wheelbase 2578 mm
101.5 in.
Front track 1539 mm
60.59 in.
Rear (Back) track 1528 mm
60.16 in.
Front overhang 880 mm
34.65 in.
Rear overhang 746 mm
29.37 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16; 225/45 R17
Wheel rims size 6J x 15; 6.5J x 15; 6.5J x 16; 7J x 17
