Specifications: Volkswagen Golf V (5-door) GTI 2.0 TFSI (200 Hp) 2004, 2005, 2006, 2007, 2008

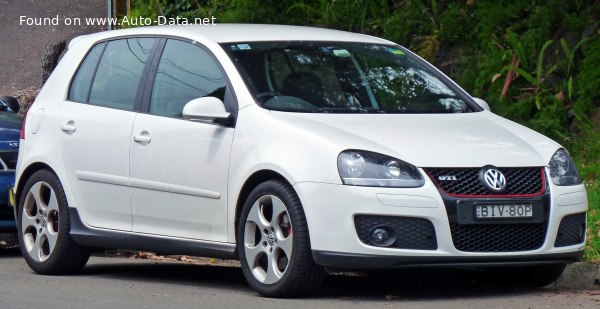

2004 Volkswagen Golf V (5-door) - Photo 1

Volkswagen Golf V (5-door) GTI 2.0 TFSI (200 Hp) – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf V (5-door)
Modification (Engine) GTI 2.0 TFSI (200 Hp)
Start of production 2004 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 11-11.1 l/100 km
21.4 – 21.2 US mpg
25.7 – 25.4 UK mpg
9.1 – 9 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.2-6.3 l/100 km
37.9 – 37.3 US mpg
45.6 – 44.8 UK mpg
16.1 – 15.9 km/l
Fuel consumption (economy) – combined (NEDC) 8-8.1 l/100 km
29.4 – 29 US mpg
35.3 – 34.9 UK mpg
12.5 – 12.3 km/l
CO2 emissions (NEDC) 192-194 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.2 sec
Acceleration 0 – 62 mph 7.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.8 sec
Maximum speed 235 km/h
146.02 mph
Emission standard Euro 4
Weight-to-power ratio 6.8 kg/Hp, 146.6 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 205.3 Nm/tonne
Engine specs
Power 200 Hp @ 5100 rpm.
Power per litre 100.8 Hp/l
Torque 280 Nm @ 1800-5000 rpm.
206.52 lb.-ft. @ 1800-5000 rpm.
Engine layout Front, Transverse
Engine Model/Code BWA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1364 kg
3007.11 lbs.
Max. weight 1860 kg
4100.6 lbs.
Max load 496 kg
1093.49 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 1305 l
46.09 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1700 kg
3747.86 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4216 mm
165.98 in.
Width 1759 mm
69.25 in.
Width including mirrors 2010 mm
79.13 in.
Height 1469 mm
57.83 in.
Wheelbase 2578 mm
101.5 in.
Front track 1534 mm
60.39 in.
Rear (Back) track 1516 mm
59.69 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R17; 225/40 R18
Wheel rims size 7.5J x 17; 7.5J x 18
