Specifications: Volkswagen Golf V Plus 1.4 TSI (160 Hp) 2008

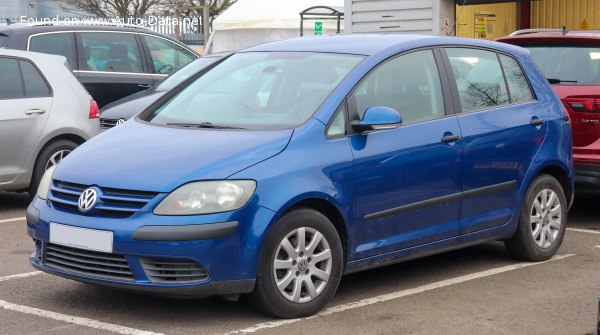

2004 Volkswagen Golf V Plus - Photo 1

Volkswagen Golf V Plus 1.4 TSI (160 Hp) – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf V Plus
Modification (Engine) 1.4 TSI (160 Hp)
Start of production April, 2008 year
End of production November, 2008 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.6 US mpg
52.3 UK mpg
18.5 km/l
Fuel consumption (economy) – combined 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.5 sec
Acceleration 0 – 62 mph 8.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.1 sec
Maximum speed 214 km/h
132.97 mph
Emission standard Euro 5
Weight-to-power ratio 8.8 kg/Hp, 113.8 Hp/tonne
Engine specs
Power 160 Hp @ 5800 rpm.
Power per litre 115.1 Hp/l
Engine layout Front, Transverse
Engine Model/Code CAVD, CTHD
Engine displacement 1390 cm3
84.82 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1406 kg
3099.7 lbs.
Max. weight 1990 kg
4387.2 lbs.
Max load 584 kg
1287.5 lbs.
Trunk (boot) space – minimum 305 l
10.77 cu. ft.
Trunk (boot) space – maximum 1360 l
48.03 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4204 mm
165.51 in.
Width 1759 mm
69.25 in.
Height 1592 mm
62.68 in.
Wheelbase 2578 mm
101.5 in.
Front track 1541 mm
60.67 in.
Rear (Back) track 1517 mm
59.72 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 6J x 15; 6.5J x 16; 7J x 17
