Specifications: Volkswagen Golf V Variant 1.9 TDI (105 Hp) DSG 2007, 2008, 2009

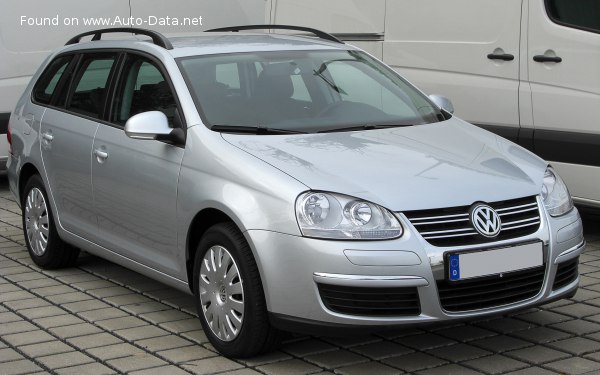

2007 Volkswagen Golf V Variant - Photo 1

Volkswagen Golf V Variant 1.9 TDI (105 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf V Variant
Modification (Engine) 1.9 TDI (105 Hp) DSG
Start of production March, 2007 year
End of production May, 2009 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – combined 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.6 sec
Acceleration 0 – 62 mph 12.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12 sec
Maximum speed 185 km/h
114.95 mph
Emission standard Euro 4
Weight-to-power ratio 13.3 kg/Hp, 75.3 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 179.3 Nm/tonne
Engine specs
Power 105 Hp @ 4000 rpm.
Power per litre 55.4 Hp/l
Torque 250 Nm @ 1900 rpm.
184.39 lb.-ft. @ 1900 rpm.
Engine layout Front, Transverse
Engine Model/Code EA188 / BXE
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 19:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1394 kg
3073.24 lbs.
Max. weight 2020 kg
4453.34 lbs.
Max load 626 kg
1380.09 lbs.
Trunk (boot) space – minimum 505 l
17.83 cu. ft.
Trunk (boot) space – maximum 1495 l
52.8 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4556 mm
179.37 in.
Width 1781 mm
70.12 in.
Height 1504 mm
59.21 in.
Wheelbase 2578 mm
101.5 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1508 mm
59.37 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Assisting systems ABS (Anti-lock braking system)
Tires size 205/55 R16
Wheel rims size 6.5J x 16
