Specifications: Volkswagen Golf VI (5-door) 1.2 TSI (105 Hp) DSG 2009, 2010, 2011, 2012

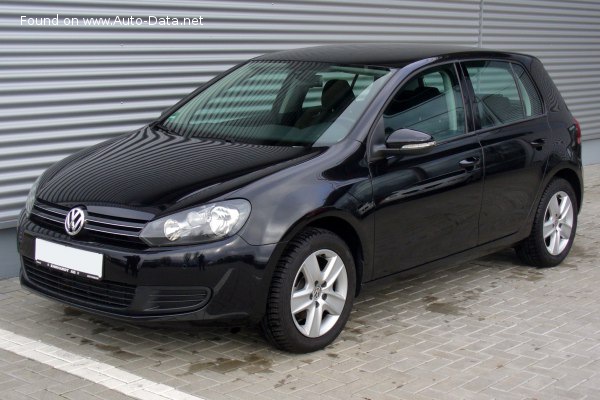

2009 Volkswagen Golf VI (5-door) - Photo 1

Volkswagen Golf VI (5-door) 1.2 TSI (105 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf VI (5-door)
Modification (Engine) 1.2 TSI (105 Hp) DSG
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption (economy) – combined (NEDC) 5.8 l/100 km
40.6 US mpg
48.7 UK mpg
17.2 km/l
CO2 emissions (NEDC) 134 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.6 sec
Acceleration 0 – 62 mph 10.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.1 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 5
Weight-to-power ratio 11.3 kg/Hp, 88.3 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 147.2 Nm/tonne
Engine specs
Power 105 Hp @ 5000 rpm.
Power per litre 87.7 Hp/l
Torque 175 Nm @ 1550-4100 rpm.
129.07 lb.-ft. @ 1550-4100 rpm.
Engine layout Front, Transverse
Engine Model/Code CBZB
Engine displacement 1197 cm3
73.05 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 75.6 mm
2.98 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1189 kg
2621.3 lbs.
Max. weight 1820 kg
4012.41 lbs.
Max load 631 kg
1391.12 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 1305 l
46.09 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 630 kg
1388.91 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4199 mm
165.31 in.
Width 1786 mm
70.31 in.
Width including mirrors 2048 mm
80.63 in.
Height 1480 mm
58.27 in.
Wheelbase 2578 mm
101.5 in.
Front track 1541 mm
60.67 in.
Rear (Back) track 1514 mm
59.61 in.
Ride height (ground clearance) 150 mm
5.91 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Approach angle 13.1°
Departure angle 17.6°
Ramp-over (brakeover) angle 8.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R 15
Wheel rims size 6 J x 15
