Specifications: Volkswagen Golf VI (5-door) 2.0 TDI (140 Hp) 4MOTION 2008, 2009, 2010, 2011, 2012

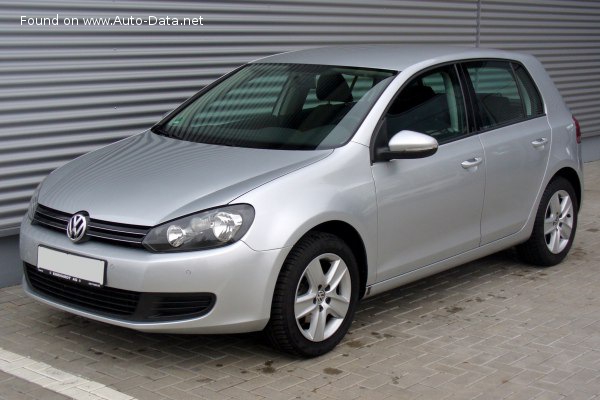

2009 Volkswagen Golf VI (5-door) - Photo 1

Volkswagen Golf VI (5-door) 2.0 TDI (140 Hp) 4MOTION – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf VI (5-door)
Modification (Engine) 2.0 TDI (140 Hp) 4MOTION
Start of production 2008 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined (NEDC) 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
CO2 emissions (NEDC) 143 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.4 sec
Acceleration 0 – 62 mph 9.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.9 sec
Maximum speed 206 km/h
128 mph
Emission standard Euro 5
Weight-to-power ratio 9.8 kg/Hp, 101.7 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 232.6 Nm/tonne
Engine specs
Power 140 Hp @ 4200 rpm.
Power per litre 71.1 Hp/l
Torque 320 Nm @ 1750-2500 rpm.
236.02 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CBAB, CFFB
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1376 kg
3033.56 lbs.
Max. weight 2020 kg
4453.34 lbs.
Max load 644 kg
1419.78 lbs.
Trunk (boot) space – minimum 275 l
9.71 cu. ft.
Trunk (boot) space – maximum 1230 l
43.44 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 730 kg
1609.37 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4199 mm
165.31 in.
Width 1786 mm
70.31 in.
Width including mirrors 2048 mm
80.63 in.
Height 1480 mm
58.27 in.
Wheelbase 2578 mm
101.5 in.
Front track 1541 mm
60.67 in.
Rear (Back) track 1514 mm
59.61 in.
Ride height (ground clearance) 150 mm
5.91 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Approach angle 13.1°
Departure angle 17.6°
Ramp-over (brakeover) angle 8.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R 16
Wheel rims size 6.5 J x 16
