Specifications: Volkswagen Golf VI Plus 1.6 TDI (105 Hp) 2009, 2010, 2011, 2012, 2013, 2014

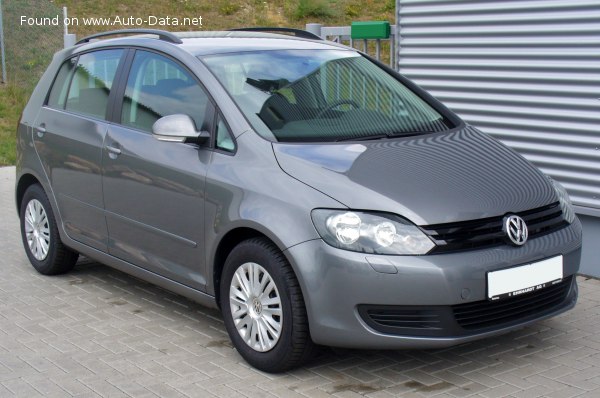

2009 Volkswagen Golf VI Plus - Photo 1

Volkswagen Golf VI Plus 1.6 TDI (105 Hp) – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf VI Plus
Modification (Engine) 1.6 TDI (105 Hp)
Start of production May, 2009 year
End of production January, 2014 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
Fuel consumption (economy) – combined 4.8 l/100 km
49 US mpg
58.9 UK mpg
20.8 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.1 sec
Acceleration 0 – 62 mph 12.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.5 sec
Maximum speed 184 km/h
114.33 mph
Weight-to-power ratio 13.8 kg/Hp, 72.6 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 172.9 Nm/tonne
Engine specs
Power 105 Hp @ 4400 rpm.
Power per litre 65.7 Hp/l
Torque 250 Nm @ 1500-2500 rpm.
184.39 lb.-ft. @ 1500-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CAYC
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1446 kg
3187.88 lbs.
Max. weight 2010 kg
4431.29 lbs.
Max load 564 kg
1243.41 lbs.
Trunk (boot) space – minimum 395 l
13.95 cu. ft.
Trunk (boot) space – maximum 1450 l
51.21 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4204 mm
165.51 in.
Width 1759 mm
69.25 in.
Height 1592 mm
62.68 in.
Wheelbase 2578 mm
101.5 in.
Front track 1541 mm
60.67 in.
Rear (Back) track 1517 mm
59.72 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
