Specifications: Volkswagen Golf VII (5-door, facelift 2017) GTI Performance 2.0 TSI (245 Hp) DSG OPF 2018, 2019

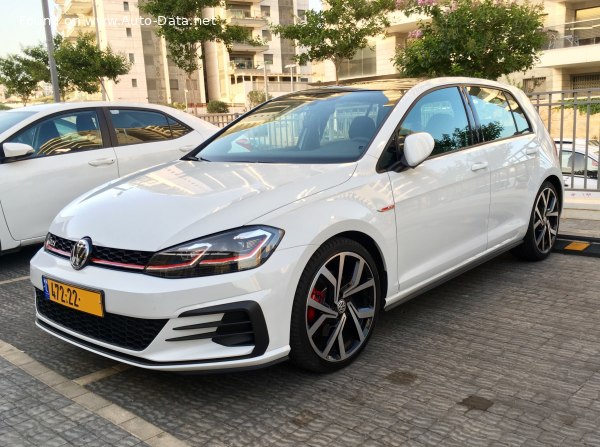

2017 Volkswagen Golf VII (5-door, facelift 2017) - Photo 1

Volkswagen Golf VII (5-door, facelift 2017) GTI Performance 2.0 TSI (245 Hp) DSG OPF – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf VII (5-door, facelift 2017)
Modification (Engine) GTI Performance 2.0 TSI (245 Hp) DSG OPF
Start of production December, 2018 year
End of production December, 2019 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel consumption at Medium speed (WLTP) 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption at high speed (WLTP) 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
Fuel consumption at very high speed (WLTP) 7.2 l/100 km
32.7 US mpg
39.2 UK mpg
13.9 km/l
Combined fuel consumption (WLTP) 7.4 l/100 km
31.8 US mpg
38.2 UK mpg
13.5 km/l
CO2 emissions (WLTP) 169 g/km
Fuel consumption (economy) – urban (NEDC) 7.3-7.5 l/100 km
32.2 – 31.4 US mpg
38.7 – 37.7 UK mpg
13.7 – 13.3 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.5-5.6 l/100 km
42.8 – 42 US mpg
51.4 – 50.4 UK mpg
18.2 – 17.9 km/l
Fuel consumption (economy) – combined (NEDC) 6.2-6.3 l/100 km
37.9 – 37.3 US mpg
45.6 – 44.8 UK mpg
16.1 – 15.9 km/l
CO2 emissions (NEDC) 140-143 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.3 sec
Acceleration 0 – 62 mph 6.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 6d-TEMP-EVAP-ISC
Weight-to-power ratio 5.6 kg/Hp, 178.8 Hp/tonne
Weight-to-torque ratio 3.7 kg/Nm, 270.1 Nm/tonne
Engine specs
Power 245 Hp @ 5000-6200 rpm.
Power per litre 123.5 Hp/l
Torque 370 Nm @ 1600-4300 rpm.
272.9 lb.-ft. @ 1600-4300 rpm.
Engine layout Front, Transverse
Engine Model/Code EA888 / DKTB
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1370 kg
3020.33 lbs.
Max. weight 1920 kg
4232.88 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Trunk (boot) space – maximum 1270 l
44.85 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 720 kg
1587.33 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4268 mm
168.03 in.
Width 1799 mm
70.83 in.
Width including mirrors 2027 mm
79.8 in.
Height 1482 mm
58.35 in.
Wheelbase 2626 mm
103.39 in.
Front track 1527-1550 mm
60.12 – 61.02 in.
Rear (Back) track 1503-1521 mm
59.17 – 59.88 in.
Ride height (ground clearance) 133 mm
5.24 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R17; 225/40 R18; 225/35 R19
Wheel rims size 7.5J x 17; 7.5J x 18; 7.5J x 19
