Specifications: Volkswagen Golf VII Sportsvan 1.4 TSI (125 Hp) 2014, 2015, 2016, 2017

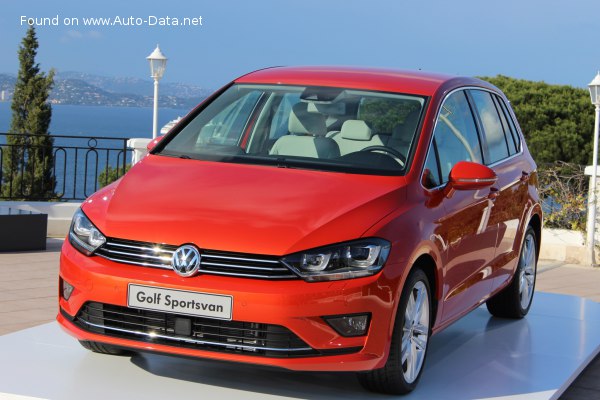

2013 Volkswagen Golf VII Sportsvan - Photo 1

Volkswagen Golf VII Sportsvan 1.4 TSI (125 Hp) – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf VII Sportsvan
Modification (Engine) 1.4 TSI (125 Hp)
Start of production April, 2014 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.9-7.1 l/100 km
34.1 – 33.1 US mpg
40.9 – 39.8 UK mpg
14.5 – 14.1 km/l
Fuel consumption (economy) – extra urban 4.5-4.8 l/100 km
52.3 – 49 US mpg
62.8 – 58.9 UK mpg
22.2 – 20.8 km/l
Fuel consumption (economy) – combined 5.4-5.6 l/100 km
43.6 – 42 US mpg
52.3 – 50.4 UK mpg
18.5 – 17.9 km/l
CO2 emissions 125-130 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.9 sec
Acceleration 0 – 62 mph 9.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.4 sec
Maximum speed 200 km/h
124.27 mph
Weight-to-power ratio 10.9 kg/Hp, 91.8 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.8 Nm/tonne
Engine specs
Power 125 Hp @ 5000-6000 rpm.
Power per litre 89.6 Hp/l
Torque 200 Nm @ 1400-4000 rpm.
147.51 lb.-ft. @ 1400-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code CZCA
Engine displacement 1395 cm3
85.13 cu. in.
Number of cylinders 4
Engine configuration Inline
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1362 kg
3002.7 lbs.
Max. weight 1880 kg
4144.69 lbs.
Max load 518 kg
1141.99 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 1520 l
53.68 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4338 mm
170.79 in.
Width 1807 mm
71.14 in.
Height 1578 mm
62.13 in.
Wheelbase 2685 mm
105.71 in.
Front track 1543 mm
60.75 in.
Rear (Back) track 1514 mm
59.61 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
