Specifications: Volkswagen Golf VIII 1.0 eTSI (110 Hp) Mild Hybrid DSG 2020, 2021, 2022, 2023, 2024

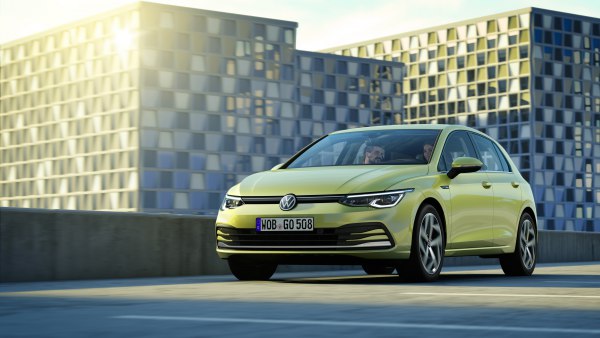

2020 Volkswagen Golf VIII - Photo 1

Volkswagen Golf VIII 1.0 eTSI (110 Hp) Mild Hybrid DSG – Full specifications
General information
Brand Volkswagen
Model Golf
Generation Golf VIII
Modification (Engine) 1.0 eTSI (110 Hp) Mild Hybrid DSG
Start of production 2020 year
End of production 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
Fuel consumption at Medium speed (WLTP) 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption at high speed (WLTP) 4.5 l/100 km
52.3 US mpg
62.8 UK mpg
22.2 km/l
Fuel consumption at very high speed (WLTP) 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
Combined fuel consumption (WLTP) 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
CO2 emissions (WLTP) 118 g/km
Fuel consumption (economy) – urban (NEDC) 5.1-5.2 l/100 km
46.1 – 45.2 US mpg
55.4 – 54.3 UK mpg
19.6 – 19.2 km/l
Fuel consumption (economy) – extra urban (NEDC) 3.8-4 l/100 km
61.9 – 58.8 US mpg
74.3 – 70.6 UK mpg
26.3 – 25 km/l
Fuel consumption (economy) – combined (NEDC) 4.3-4.5 l/100 km
54.7 – 52.3 US mpg
65.7 – 62.8 UK mpg
23.3 – 22.2 km/l
CO2 emissions (NEDC) 98-102 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 202 km/h
125.52 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 11.2 kg/Hp, 89.6 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 163 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the front seats
Electric motor 1
Electric motor location Front, Transverse
Internal combustion engine specs
Power 110 Hp @ 5000 rpm.
Power per litre 110.1 Hp/l
Torque 200 Nm @ 2000-3000 rpm.
147.51 lb.-ft. @ 2000-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code EA211 evo / DLAA
Engine displacement 999 cm3
60.96 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 74.5 mm
2.93 in.
Piston Stroke 76.4 mm
3.01 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1227 kg
2705.07 lbs.
Max. weight 1810 kg
3990.37 lbs.
Max load 583 kg
1285.29 lbs.
Trunk (boot) space – minimum 381 l
13.45 cu. ft.
Trunk (boot) space – maximum 1237 l
43.68 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1500 kg
3306.93 lbs.
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 630 kg
1388.91 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4284 mm
168.66 in.
Width 1789 mm
70.43 in.
Width including mirrors 2073 mm
81.61 in.
Height 1491 mm
58.7 in.
Wheelbase 2619 mm
103.11 in.
Front track 1533-1549 mm
60.35 – 60.98 in.
Rear (Back) track 1504-1520 mm
59.21 – 59.84 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R 16
Wheel rims size 7 J x 16
