Specifications: Volkswagen ID.3 (facelift 2023) GTX Performance 84 kWh (326 Hp) 2024, 2025

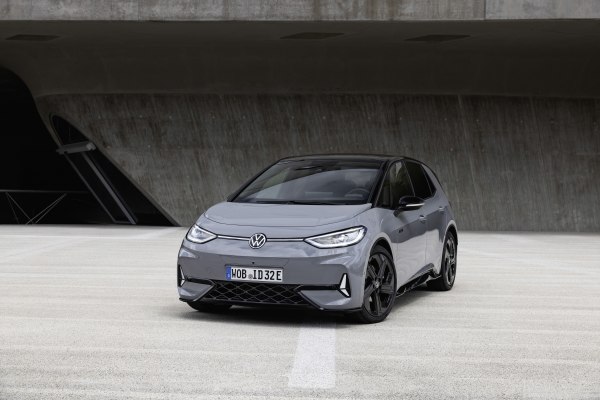

2023 Volkswagen ID.3 (facelift 2023) - Photo 1

Volkswagen ID.3 (facelift 2023) GTX Performance 84 kWh (326 Hp) – Full specifications
General information
Brand Volkswagen
Model ID.3
Generation ID.3 (facelift 2023)
Modification (Engine) GTX Performance 84 kWh (326 Hp)
Start of production August, 2024 year
Powertrain Architecture BEV (Electric Vehicle)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 5.7 sec
Acceleration 0 – 62 mph 5.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.4 sec
Maximum speed 200 km/h
124.27 mph
Weight-to-power ratio 5.9 kg/Hp, 169.4 Hp/tonne
Weight-to-torque ratio 3.5 kg/Nm, 283.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 84 kWh
Net (usable) battery capacity 79 kWh
Battery voltage 353 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location Below the floor
All-electric range (WLTP) 601 km
373.44 mi
Average Energy consumption (WLTP) 14.6 kWh/100 km

23.5 kWh/100 mi
143 MPGe
6.8 km/kWh
4.3 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 326 Hp
Electric motor Torque 545 Nm

401.97 lb.-ft.
Electric motor model/code APP550
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 326 Hp
System torque 545 Nm
401.97 lb.-ft.

Space, Volume and weights
Kerb Weight 1925 kg
4243.9 lbs.
Max. weight 2430 kg
5357.23 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 385 l
13.6 cu. ft.
Trunk (boot) space – maximum 1267 l
44.74 cu. ft.
Dimensions
Length 4264 mm
167.87 in.
Width 1809 mm
71.22 in.
Width including mirrors 2070 mm
81.5 in.
Height 1564 mm
61.57 in.
Wheelbase 2770 mm
109.06 in.
Front track 1537-1549 mm
60.51 – 60.98 in.
Rear (Back) track 1514-1526 mm
59.61 – 60.08 in.
Drag coefficient (Cd) 0.274
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Approach angle 13.6°
Departure angle 17°
Ramp-over (brakeover) angle 10.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the rear wheels.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/45 R20
Wheel rims size 8J x 20
