Specifications: Volkswagen ID.4 GTX 82 kWh (340 Hp) 4MOTION 2023, 2024, 2025

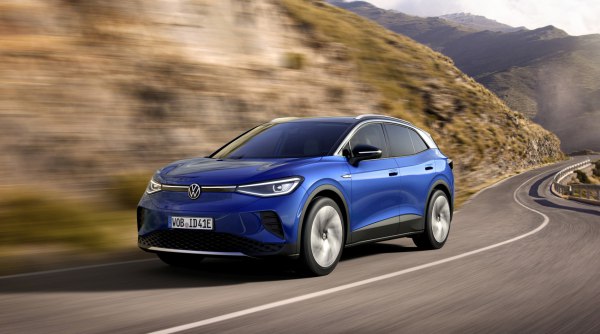

2021 Volkswagen ID.4 - Photo 1

Volkswagen ID.4 GTX 82 kWh (340 Hp) 4MOTION – Full specifications
General information
Brand Volkswagen
Model ID.4
Generation ID.4
Modification (Engine) GTX 82 kWh (340 Hp) 4MOTION
Start of production October, 2023 year
Powertrain Architecture BEV (Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 5.4 sec
Acceleration 0 – 62 mph 5.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.1 sec
Maximum speed 180 km/h, Electronically limited
111.85 mph
Weight-to-power ratio 6.6 kg/Hp, 150.7 Hp/tonne
Electric cars and hybrids specs
Gross battery capacity 82 kWh
Net (usable) battery capacity 77 kWh
Battery voltage 354 V
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
All-electric range (WLTP) 515 km
320.01 mi
Average Energy consumption (WLTP) 17.1 kWh/100 km

27.52 kWh/100 mi
122 MPGe
5.8 km/kWh
3.6 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
Electric motor 2
Electric motor location Front axle, Transverse
Electric motor type Asynchronous
System power 340 Hp

Space, Volume and weights
Kerb Weight 2256 kg
4973.63 lbs.
Max. weight 2770 kg
6106.8 lbs.
Max load 514 kg
1133.18 lbs.
Trunk (boot) space – minimum 543 l
19.18 cu. ft.
Trunk (boot) space – maximum 1575 l
55.62 cu. ft.
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1400 kg
3086.47 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4582 mm
180.39 in.
Width 1852 mm
72.91 in.
Width including mirrors 2108 mm
82.99 in.
Height 1632 mm
64.25 in.
Wheelbase 2769 mm
109.02 in.
Front track 1588-1598 mm
62.52 – 62.91 in.
Rear (Back) track 1564-1570 mm
61.57 – 61.81 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Approach angle 16.5°
Departure angle 18.3°
Ramp-over (brakeover) angle 13.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 235/50 R20
Rear wheel tires: 255/45 R20
Wheel rims size Front wheel rims: 8J x 20
Rear wheel rims: 9J x 20
