Specifications: Volkswagen ID.5 82 kWh (204 Hp) 2022, 2023

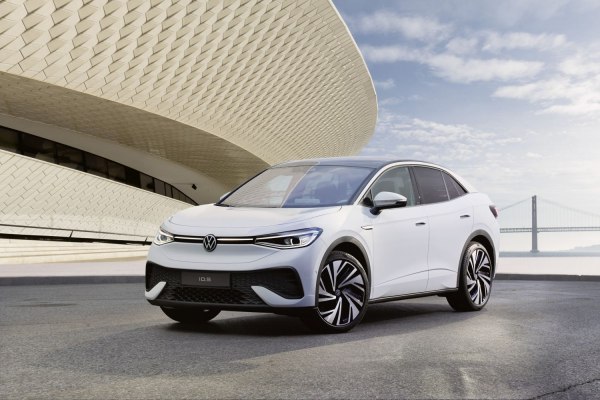

2022 Volkswagen ID.5 - Photo 1

Volkswagen ID.5 82 kWh (204 Hp) – Full specifications
General information
Brand Volkswagen
Model ID.5
Generation ID.5
Modification (Engine) 82 kWh (204 Hp)
Start of production 2022 year
End of production October, 2023 year
Powertrain Architecture BEV (Electric Vehicle)
Body type Coupe, SUV
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 8.4 sec
Acceleration 0 – 62 mph 8.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8 sec
Maximum speed 160 km/h, Electronically limited
99.42 mph
Weight-to-power ratio 10 kg/Hp, 99.9 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 151.8 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 82 kWh
Net (usable) battery capacity 77 kWh
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery weight 495 kg
1091.29 lbs.
Battery location Below the floor
All-electric range (WLTP) 516 km
320.63 mi
Average Energy consumption (WLTP) 16.9 kWh/100 km

27.2 kWh/100 mi
124 MPGe
5.9 km/kWh
3.7 mi/kWh
Average Energy consumption 16.2 kWh/100 km

26.07 kWh/100 mi
129 MPGe
6.2 km/kWh
3.8 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 204 Hp
Electric motor Torque 310 Nm

228.64 lb.-ft.
Electric motor model/code EBJA
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 204 Hp
System torque 310 Nm
228.64 lb.-ft.

Space, Volume and weights
Kerb Weight 2042 kg
4501.84 lbs.
Max. weight 2650 kg
5842.25 lbs.
Max load 608 kg
1340.41 lbs.
Trunk (boot) space – minimum 549 l
19.39 cu. ft.
Trunk (boot) space – maximum 1561 l
55.13 cu. ft.
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1200 kg
2645.55 lbs.
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4599 mm
181.06 in.
Width 1852 mm
72.91 in.
Width including mirrors 2108 mm
82.99 in.
Height 1615 mm
63.58 in.
Wheelbase 2771 mm
109.09 in.
Front track 1587-1597 mm
62.48 – 62.87 in.
Rear (Back) track 1567-1573 mm
61.69 – 61.93 in.
Ride height (ground clearance) 163 mm
6.42 in.
Drag coefficient (Cd) 0.26
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the rear wheels.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 235/55 R19; 235/50 R20; 235/45 R21
Rear wheel tires: 255/50 R19; 255/45 R20; 255/40 R21
Wheel rims size Front wheel rims: 8J x 19; 8J x 20; 8.5J x 21
Rear wheel rims: 8J x 19; 9J x 20; 9J x 21
