Specifications: Volkswagen ID. Buzz 59 kWh (170 Hp) 2024, 2025

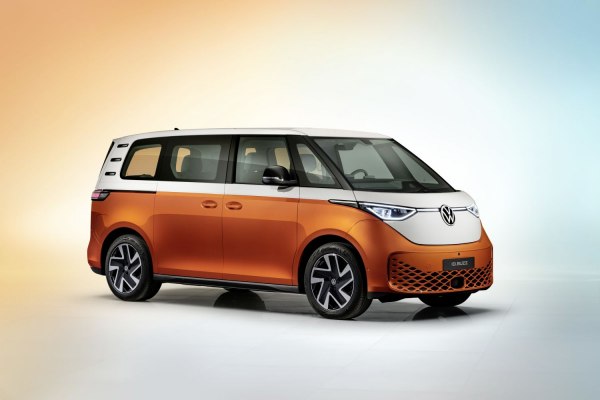

2022 Volkswagen ID. Buzz - Photo 1

Volkswagen ID. Buzz 59 kWh (170 Hp) – Full specifications
General information
Brand Volkswagen
Model ID. Buzz
Generation ID. Buzz
Modification (Engine) 59 kWh (170 Hp)
Start of production September, 2024 year
Powertrain Architecture BEV (Electric Vehicle)
Body type MPV
Seats 5-6
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 10.7 sec
Acceleration 0 – 62 mph 10.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.2 sec
Maximum speed 145 km/h
90.1 mph
Weight-to-power ratio 13.7 kg/Hp, 73.1 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.3 Nm/tonne
Electric cars and hybrids specs
Net (usable) battery capacity 59 kWh
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
All-electric range (WLTP) 306-331 km
190.14 – 205.67 mi
Average Energy consumption (WLTP) 20.3-21.9 kWh/100 km

32.67 – 35.24 kWh/100 mi
103 – 96 MPGe
4.9 – 4.6 km/kWh
3.1 – 2.8 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 170 Hp
Electric motor Torque 310 Nm

228.64 lb.-ft.
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 170 Hp
System torque 310 Nm
228.64 lb.-ft.

Space, Volume and weights
Kerb Weight 2325 kg
5125.75 lbs.
Max. weight 3000 kg
6613.87 lbs.
Max load 675 kg
1488.12 lbs.
Trunk (boot) space – minimum 1121 l
39.59 cu. ft.
Trunk (boot) space – maximum 2205 l
77.87 cu. ft.
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4712 mm
185.51 in.
Width 1985 mm
78.15 in.
Width including mirrors 2212 mm
87.09 in.
Height 1927 mm
75.87 in.
Wheelbase 2989 mm
117.68 in.
Front track 1673-1683 mm
65.87 – 66.26 in.
Rear (Back) track 1666-1670 mm
65.59 – 65.75 in.
Front overhang 819 mm
32.24 in.
Rear overhang 904 mm
35.59 in.
Ride height (ground clearance) 158 mm
6.22 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Approach angle 16.4°
Departure angle 14.8°
Ramp-over (brakeover) angle 12°
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the rear wheels.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 235/60 R18
Rear wheel tires: 255/55 R18
Wheel rims size Front wheel rims: 8J x 18
Rear wheel rims: 8.5J x 18
