Specifications: Volkswagen Jetta II 1.8i (90 Hp) 1986, 1987

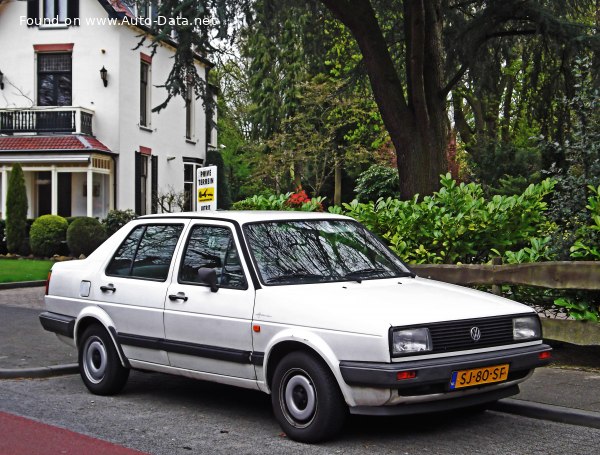

1984 Volkswagen Jetta II - Photo 1

Volkswagen Jetta II 1.8i (90 Hp) – Full specifications
General information
Brand Volkswagen
Model Jetta
Generation Jetta II
Modification (Engine) 1.8i (90 Hp)
Start of production 1986 year
End of production 1987 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
Fuel consumption (economy) – combined 8.5 l/100 km
27.7 US mpg
33.2 UK mpg
11.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.9 sec
Acceleration 0 – 62 mph 11.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.3 sec
Maximum speed 173 km/h
107.5 mph
Weight-to-power ratio 10.9 kg/Hp, 91.4 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 147.2 Nm/tonne
Engine specs
Power 90 Hp @ 5500 rpm.
Power per litre 50.5 Hp/l
Torque 145 Nm @ 2500 rpm.
106.95 lb.-ft. @ 2500 rpm.
Engine layout Front, Transverse
Engine Model/Code RP
Engine displacement 1781 cm3
108.68 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 985 kg
2171.55 lbs.
Max. weight 1470 kg
3240.8 lbs.
Max load 485 kg
1069.24 lbs.
Trunk (boot) space – minimum 575 l
20.31 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4385 mm
172.64 in.
Width 1675 mm
65.94 in.
Height 1415 mm
55.71 in.
Wheelbase 2475 mm
97.44 in.
Front track 1425 mm
56.1 in.
Rear (Back) track 1420 mm
55.91 in.
Drag coefficient (Cd) 0.36
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring-loaded rack
Rear suspension Spring-loaded rack
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/70 R14
Wheel rims size 14
