Specifications: Volkswagen Jetta V 2.0 TDI CR (170 Hp) DSG 2008, 2009, 2010

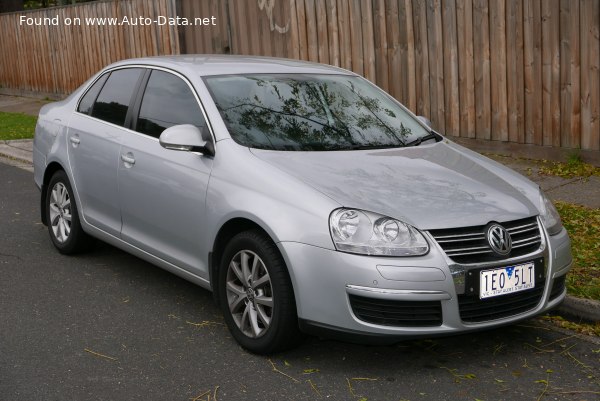

2006 Volkswagen Jetta V - Photo 1

Volkswagen Jetta V 2.0 TDI CR (170 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Jetta
Generation Jetta V
Modification (Engine) 2.0 TDI CR (170 Hp) DSG
Start of production 2008 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.8 l/100 km
49 US mpg
58.9 UK mpg
20.8 km/l
Fuel consumption (economy) – combined (NEDC) 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
CO2 emissions (NEDC) 154 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.5 sec
Acceleration 0 – 62 mph 8.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.1 sec
Maximum speed 220 km/h
136.7 mph
Emission standard Euro 4
Weight-to-power ratio 8.5 kg/Hp, 118.1 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 243.1 Nm/tonne
Engine specs
Power 170 Hp @ 4200 rpm.
Power per litre 86.4 Hp/l
Torque 350 Nm @ 1750-2500 rpm.
258.15 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CEGA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1440 kg
3174.66 lbs.
Max. weight 2030 kg
4475.38 lbs.
Max load 590 kg
1300.73 lbs.
Trunk (boot) space – minimum 527 l
18.61 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1700 kg
3747.86 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 740 kg
1631.42 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4554 mm
179.29 in.
Width 1781 mm
70.12 in.
Width including mirrors 2010 mm
79.13 in.
Height 1459 mm
57.44 in.
Wheelbase 2578 mm
101.5 in.
Front track 1534 mm
60.39 in.
Rear (Back) track 1512 mm
59.53 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Approach angle 14.6°
Departure angle 12.4°
Ramp-over (brakeover) angle 9.9°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Coil spring, Wishbone, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 6.5J x 16
