Specifications: Volkswagen Jetta VI (facelift 2014) GLI 2.0 TSI (210 Hp) 2014, 2015, 2016, 2017, 2018

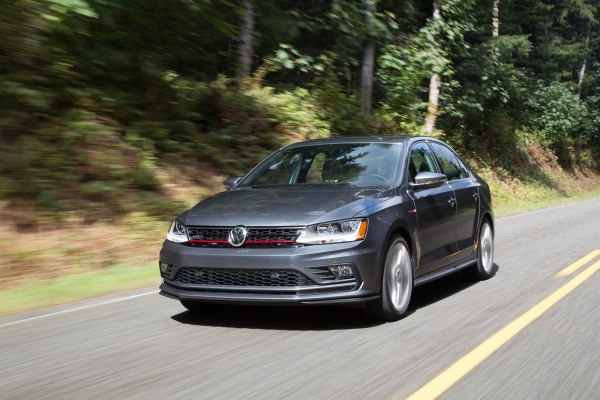

2014 Volkswagen Jetta VI (facelift 2014) - Photo 1

Volkswagen Jetta VI (facelift 2014) GLI 2.0 TSI (210 Hp) – Full specifications
General information
Brand Volkswagen
Model Jetta
Generation Jetta VI (facelift 2014)
Modification (Engine) GLI 2.0 TSI (210 Hp)
Start of production 2014 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (EPA) 10.2 l/100 km
23.1 US mpg
27.7 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban (EPA) 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
Fuel consumption (economy) – combined (EPA) 8.7 l/100 km
27 US mpg
32.5 UK mpg
11.5 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.8 kg/Hp, 146.9 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 195.8 Nm/tonne
Engine specs
Power 210 Hp @ 5300 rpm.
Power per litre 105.8 Hp/l
Torque 280 Nm @ 1700-5000 rpm.
206.52 lb.-ft. @ 1700-5000 rpm.
Engine layout Front, Transverse
Engine Model/Code EA888 / CPLA, CPPA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1430 kg
3152.61 lbs.
Max. weight 1970 kg
4343.11 lbs.
Max load 540 kg
1190.5 lbs.
Trunk (boot) space – minimum 445 l
15.72 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4628 mm
182.2 in.
Width 1778 mm
70 in.
Height 1438 mm
56.61 in.
Wheelbase 2651 mm
104.37 in.
Front track 1527 mm
60.12 in.
Rear (Back) track 1533 mm
60.35 in.
Ride height (ground clearance) 124 mm
4.88 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 312×25 mm
Rear brakes Disc, 254×10 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R17; 225/40 R18
Wheel rims size 7J x 17; 7.5J x 18
