Specifications: Volkswagen Jetta VII GLI 2.0 TSI (228 Hp) DSG 2019, 2020, 2021

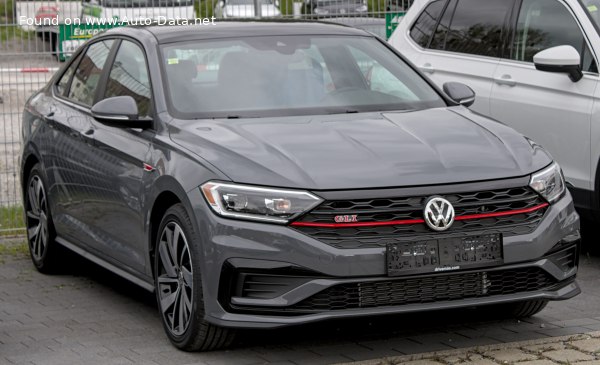

2019 Volkswagen Jetta VII - Photo 1

Volkswagen Jetta VII GLI 2.0 TSI (228 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Jetta
Generation Jetta VII
Modification (Engine) GLI 2.0 TSI (228 Hp) DSG
Start of production March, 2019 year
End of production November, 2021 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 9.4 l/100 km
25 US mpg
30.1 UK mpg
10.6 km/l
Fuel consumption (economy) – extra urban 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – combined 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.5 kg/Hp, 153.5 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 235.7 Nm/tonne
Engine specs
Power 228 Hp @ 5000 rpm.
Power per litre 115 Hp/l
Torque 350 Nm @ 1700 rpm.
258.15 lb.-ft. @ 1700 rpm.
Engine layout Front, Transverse
Engine Model/Code EA888 / DKFA
Engine displacement 1983 cm3
121.01 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.7 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC-VVT
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1485 kg
3273.86 lbs.
Max. weight 1980 kg
4365.15 lbs.
Max load 495 kg
1091.29 lbs.
Trunk (boot) space – minimum 399 l
14.09 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4704 mm
185.2 in.
Width 1798 mm
70.79 in.
Height 1443 mm
56.81 in.
Wheelbase 2682 mm
105.59 in.
Front track 1542 mm
60.71 in.
Rear (Back) track 1534 mm
60.39 in.
Ride height (ground clearance) 127 mm
5 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent coil spring
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 340 mm
Rear brakes Disc, 300 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R18
Wheel rims size 7.5J x 18
