Specifications: Volkswagen Lupo (6X) 1.6 i 16V GTI (125 Hp) 2001, 2002, 2003, 2004, 2005

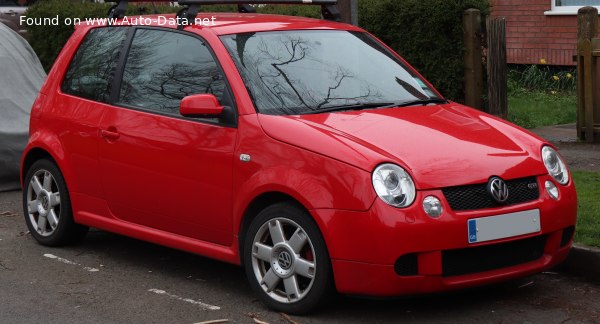

1998 Volkswagen Lupo (6X) - Photo 1

Volkswagen Lupo (6X) 1.6 i 16V GTI (125 Hp) – Full specifications
General information
Brand Volkswagen
Model Lupo
Generation Lupo (6X)
Modification (Engine) 1.6 i 16V GTI (125 Hp)
Start of production 2001 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban 10 l/100 km
23.5 US mpg
28.2 UK mpg
10 km/l
Fuel consumption (economy) – extra urban 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel consumption (economy) – combined 7 l/100 km
33.6 US mpg
40.4 UK mpg
14.3 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.2 sec
Acceleration 0 – 62 mph 8.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.8 sec
Maximum speed 205 km/h
127.38 mph
Weight-to-power ratio 7.8 kg/Hp, 127.6 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 155.1 Nm/tonne
Engine specs
Power 125 Hp @ 6500 rpm.
Power per litre 78.2 Hp/l
Torque 152 Nm @ 3000 rpm.
112.11 lb.-ft. @ 3000 rpm.
Engine layout Front, Transverse
Engine Model/Code AVY
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76.5 mm
3.01 in.
Piston Stroke 86.9 mm
3.42 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 980 kg
2160.53 lbs.
Max. weight 1320 kg
2910.1 lbs.
Max load 340 kg
749.57 lbs.
Trunk (boot) space – minimum 130 l
4.59 cu. ft.
Trunk (boot) space – maximum 830 l
29.31 cu. ft.
Fuel tank capacity 34 l
8.98 US gal | 7.48 UK gal
Dimensions
Length 3527 mm
138.86 in.
Width 1640 mm
64.57 in.
Height 1460 mm
57.48 in.
Wheelbase 2323 mm
91.46 in.
Front track 1392 mm
54.8 in.
Rear (Back) track 1400 mm
55.12 in.
Minimum turning circle (turning diameter) 9.8 m
32.15 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Coil spring
Rear suspension Trailing arm
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/45 R15
Wheel rims size 15
