Specifications: Volkswagen NEW Beetle Convertible 2.0i (115 Hp) 2002, 2003, 2004, 2005

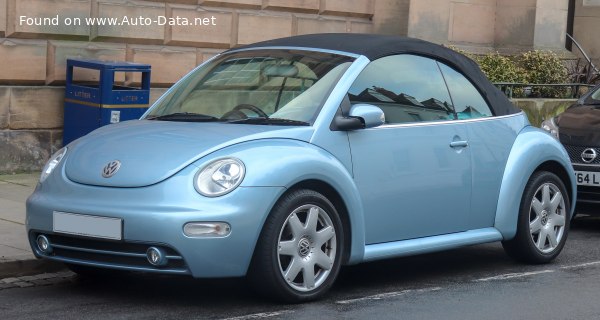

2003 Volkswagen NEW Beetle Convertible - Photo 1

Volkswagen NEW Beetle Convertible 2.0i (115 Hp) – Full specifications
General information
Brand Volkswagen
Model Beetle
Generation NEW Beetle Convertible
Modification (Engine) 2.0i (115 Hp)
Start of production 2002 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 12 l/100 km
19.6 US mpg
23.5 UK mpg
8.3 km/l
Fuel consumption (economy) – extra urban 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
Fuel consumption (economy) – combined 8.8 l/100 km
26.7 US mpg
32.1 UK mpg
11.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.7 sec
Acceleration 0 – 62 mph 11.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.1 sec
Maximum speed 185 km/h
114.95 mph
Weight-to-power ratio 11.5 kg/Hp, 86.9 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 129.9 Nm/tonne
Engine specs
Power 115 Hp @ 5400 rpm.
Power per litre 58 Hp/l
Torque 172 Nm @ 3200 rpm.
126.86 lb.-ft. @ 3200 rpm.
Engine layout Front, Transverse
Engine Model/Code AZJ, BEV
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 10.3:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5 l
5.28 US qt | 4.4 UK qt

Space, Volume and weights
Kerb Weight 1324 kg
2918.92 lbs.
Max. weight 1770 kg
3902.18 lbs.
Max load 446 kg
983.26 lbs.
Trunk (boot) space – minimum 270 l
9.53 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4081 mm
160.67 in.
Width 1724 mm
67.87 in.
Height 1502 mm
59.13 in.
Wheelbase 2509 mm
98.78 in.
Front track 1506 mm
59.29 in.
Rear (Back) track 1487 mm
58.54 in.
Ride height (ground clearance) 130 mm
5.12 in.
Drag coefficient (Cd) 0.37
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 6.5J x 16
