Specifications: Volkswagen Passat (B6) 2.0 TSI (200 Hp) DSG 2010

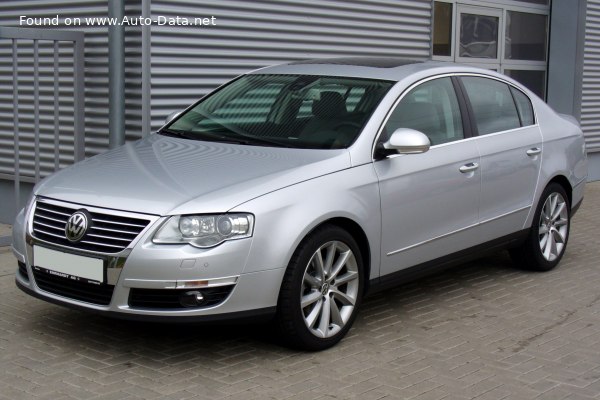

2005 Volkswagen Passat (B6) - Photo 1

Volkswagen Passat (B6) 2.0 TSI (200 Hp) DSG – Full specifications
General information
Brand Volkswagen
Model Passat
Generation Passat (B6)
Modification (Engine) 2.0 TSI (200 Hp) DSG
Start of production February, 2010 year
End of production October, 2010 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 11 l/100 km
21.4 US mpg
25.7 UK mpg
9.1 km/l
Fuel consumption (economy) – extra urban (NEDC) 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
Fuel consumption (economy) – combined (NEDC) 7.9 l/100 km
29.8 US mpg
35.8 UK mpg
12.7 km/l
CO2 emissions (NEDC) 184 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.6 sec
Acceleration 0 – 62 mph 7.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.2 sec
Maximum speed 235 km/h
146.02 mph
Emission standard Euro 5
Weight-to-power ratio 7.3 kg/Hp, 137.2 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 192 Nm/tonne
Engine specs
Power 200 Hp @ 5100-6000 rpm.
Power per litre 100.8 Hp/l
Torque 280 Nm @ 1700-5000 rpm.
206.52 lb.-ft. @ 1700-5000 rpm.
Engine layout Front, Transverse
Engine Model/Code BPY, CAWB, CCTA, CCZA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1458 kg
3214.34 lbs.
Max. weight 2080 kg
4585.62 lbs.
Max load 622 kg
1371.28 lbs.
Trunk (boot) space – minimum 565 l
19.95 cu. ft.
Trunk (boot) space – maximum 1091 l
38.53 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4765 mm
187.6 in.
Width 1820 mm
71.65 in.
Width including mirrors 1991 mm
78.39 in.
Height 1472 mm
57.95 in.
Wheelbase 2709 mm
106.65 in.
Front track 1552 mm
61.1 in.
Rear (Back) track 1551 mm
61.06 in.
Ride height (ground clearance) 114 mm
4.49 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Approach angle 14.4°
Departure angle 12.6°
Ramp-over (brakeover) angle 10.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R 16
Wheel rims size 6.5 J x 16
