Specifications: Volkswagen Passat CC I 2.0 TDI BMT (170 Hp) 4MOTION DSG 2010, 2011, 2012

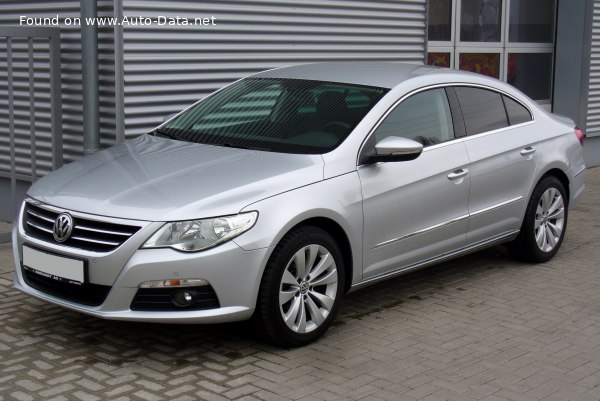

2008 Volkswagen Passat CC I - Photo 1

Volkswagen Passat CC I 2.0 TDI BMT (170 Hp) 4MOTION DSG – Full specifications
General information
Brand Volkswagen
Model Passat CC
Generation Passat CC I
Modification (Engine) 2.0 TDI BMT (170 Hp) 4MOTION DSG
Start of production 2010 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 4
Performance specs
Fuel consumption (economy) – urban 7 l/100 km
33.6 US mpg
40.4 UK mpg
14.3 km/l
Fuel consumption (economy) – extra urban 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – combined 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
CO2 emissions 154 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.6 sec
Acceleration 0 – 62 mph 8.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.2 sec
Maximum speed 220 km/h
136.7 mph
Emission standard Euro 5
Weight-to-power ratio 9.6 kg/Hp, 104.5 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 215.1 Nm/tonne
Engine specs
Power 170 Hp @ 4200 rpm.
Power per litre 86.4 Hp/l
Torque 350 Nm @ 1750-2500 rpm.
258.15 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code CBBB, CFGB
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1627 kg
3586.92 lbs.
Max. weight 2090 kg
4607.66 lbs.
Max load 463 kg
1020.74 lbs.
Trunk (boot) space – minimum 532 l
18.79 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4799 mm
188.94 in.
Width 1855 mm
73.03 in.
Width including mirrors 2090 mm
82.28 in.
Height 1417 mm
55.79 in.
Wheelbase 2711 mm
106.73 in.
Front track 1552 mm
61.1 in.
Rear (Back) track 1559 mm
61.38 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/45 R17
Wheel rims size 7.5J x 17
